The SC5100 series intelligent controller is a new-generation product developed by our company based on over fifteen years of industry experience and in-depth research into user habits. This series features powerful functionality, high measurement accuracy, strong reliability, excellent anti-interference capability, and user-friendly operation.
Depending on its configuration, the controller can measure more than 30 water quality parameters, including:
pH, ORP, conductivity, TDS, salinity, water hardness, residual chlorine, dissolved oxygen, turbidity, suspended solids concentration, fluoride ion, chloride ion, ammonia nitrogen, bromide ion, nitrate, nitrite, cyanide, thiocyanate, sodium ion, potassium ion, silver ion, iodide ion, sulfide ion, hexavalent chromium, copper ion, lead ion, cadmium ion, and others.
| |
| Smart Turbidity Controller(Low Range) | Smart Turbidity Controller(High Range) |
General Function Description of SC5100 Series Controllers
Item | Description |
Input Impedance | >1012 Ω |
Key Features | Innovative modular circuit design using 32-bit MCU and high-performance components. Combines advanced algorithms to achieve stable and accurate measurements with excellent anti-interference capabilities. |
User Interface | Chinese/English switchable; intuitive “Navigation Menu” for simple and user-friendly operation. |
Information Inquiry | Unique “Info” one-key inquiry function to view current configuration and operation records. |
Display | High-contrast LCD with UV-resistant backlight; resolution: 192×96 |
Power Supply | 100~245VAC, 50/60Hz (optional 24VDC); power consumption < 10W |
Temperature Compensation | Supports Pt100/Pt1000/NTC10k/manual setup/automatic or no compensation; offset adjustable |
Calibration | Two-point calibration; previous calibration data automatically recorded and retrievable |
Relay Output | Two standard relay outputs; contact capacity 220V/1A; supports six working modes; suitable for chemical dosing, anti-pollution control, and timed control. |
Current Output | Two 4-20 mA outputs (optional); transmission error correction; max load 500 Ω |
Digital Communication | RS485 opto-isolated digital output; standard Modbus-RTU protocol (optional) |
Function Extension | Supports sensor cleaning, maintenance reminders, calibration alerts, and scheduled notifications |
Dimensions | External: 96×96×143 mm; Panel cutout: 92×92 mm; enclosure depth >133 mm |
Sensor | Technical specifications depend on selected sensor model |
Operating Environment | -10 ~ 60°C (14 ~ 140°F), 0-85% RH, non-condensing |
Storage Environment | -20 ~ 70°C (-4 ~ 158°F), 0-90% RH, non-condensing |
Security | Two-level password protection |
Protection Grade | IP65 |
Installation | Panel mounting |
Weight | Approx. 0.5 KG |
Controller Technical Specifications
Model： SC5105
Measuring Range: 0-10/20/100 NTU
Accuracy: 1%FS
Resolution: 0.01NTU
Analog Output: 1×4–20mA (Load<750Ω)
Control Functions: 2relayoutputs(220V/1A)
Power Supply: 220VAC/24VDC
Protection Level: IP65
Instrument Size: 96×96×143mm
Mounting Method: Panel mounting
Panel Cutout Size: 92×92mm
Sensor Technical Specifications
 | Online Low-Range Turbidity Sensor Model: AS705L Measurement Principle: Optical Method Measuring Range: 0–10/20/100NTU Pressure Resistance: 0.3MPa Temperature Range: 0–45℃ Flow Velocity Range:>0.3cm/s Flow Rate Range: 30–120L/H Electrode Size: φ50mm×200mm Material: POM Connection Method: Used with a dedicated flow cell Applicable Environments: Water treatment plants, swimming pools, etc. |
 | Online High-Range Turbidity Sensor Model: AS705H Measurement Principle: Optical Method Measuring Range: 0–100/1000NTU Pressure Resistance: 0.3MPa Temperature Range: 0–60℃ Electrode Size: φ50mm×200mm Material: POM + Stainless Steel Connection Method: 3/4 NPT Applicable Environments: Surface water, process water, sewage, etc |

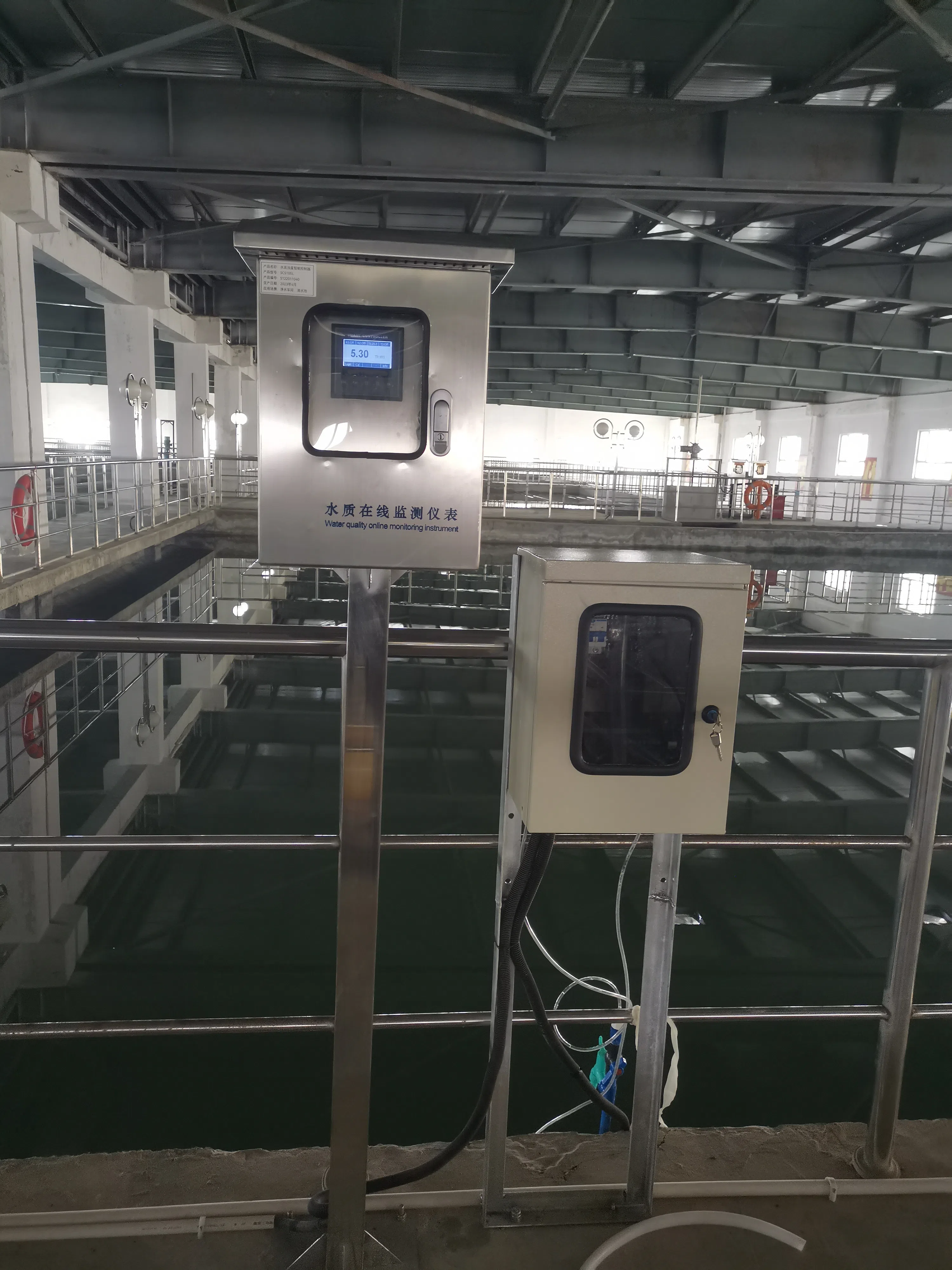

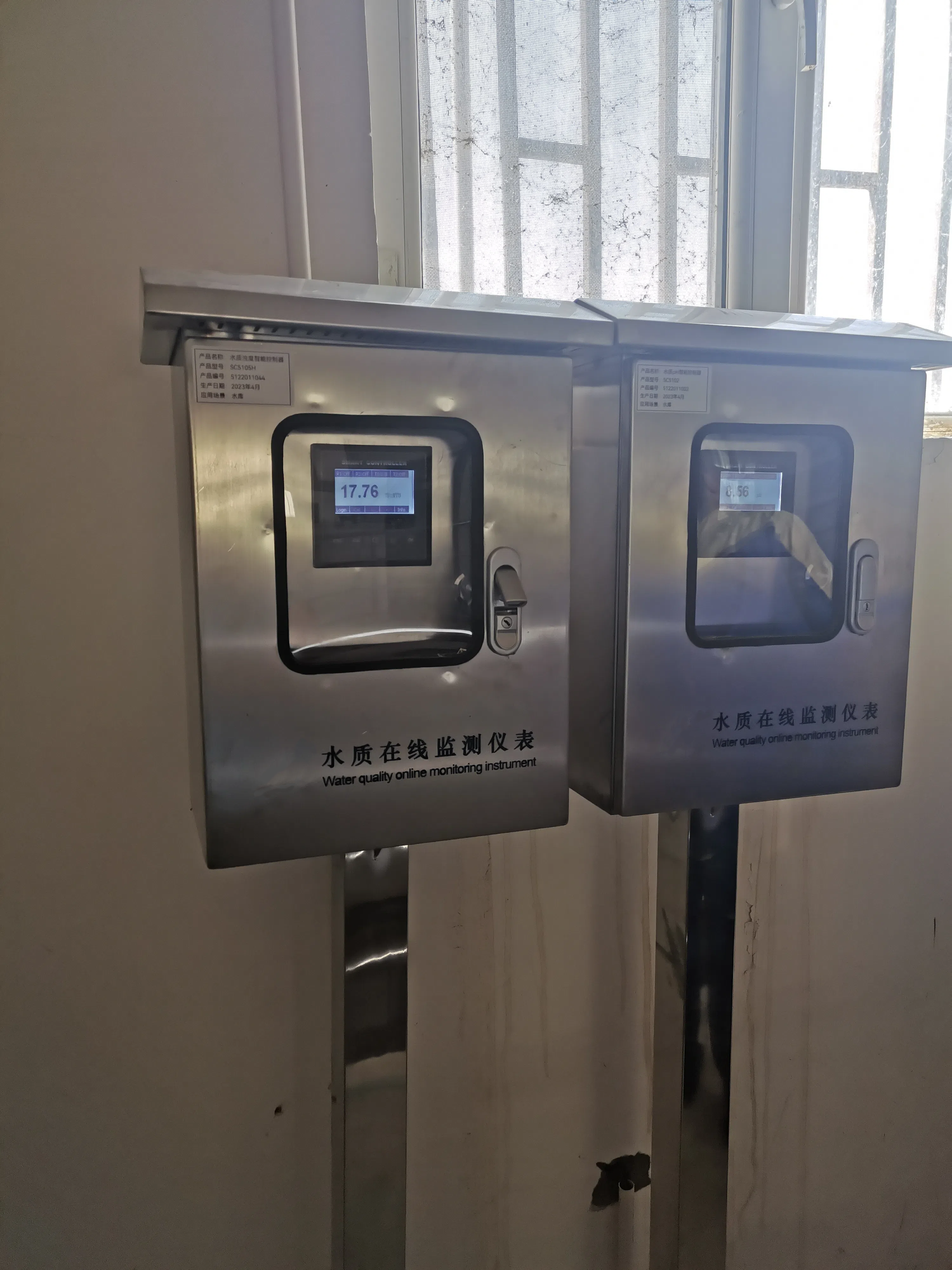

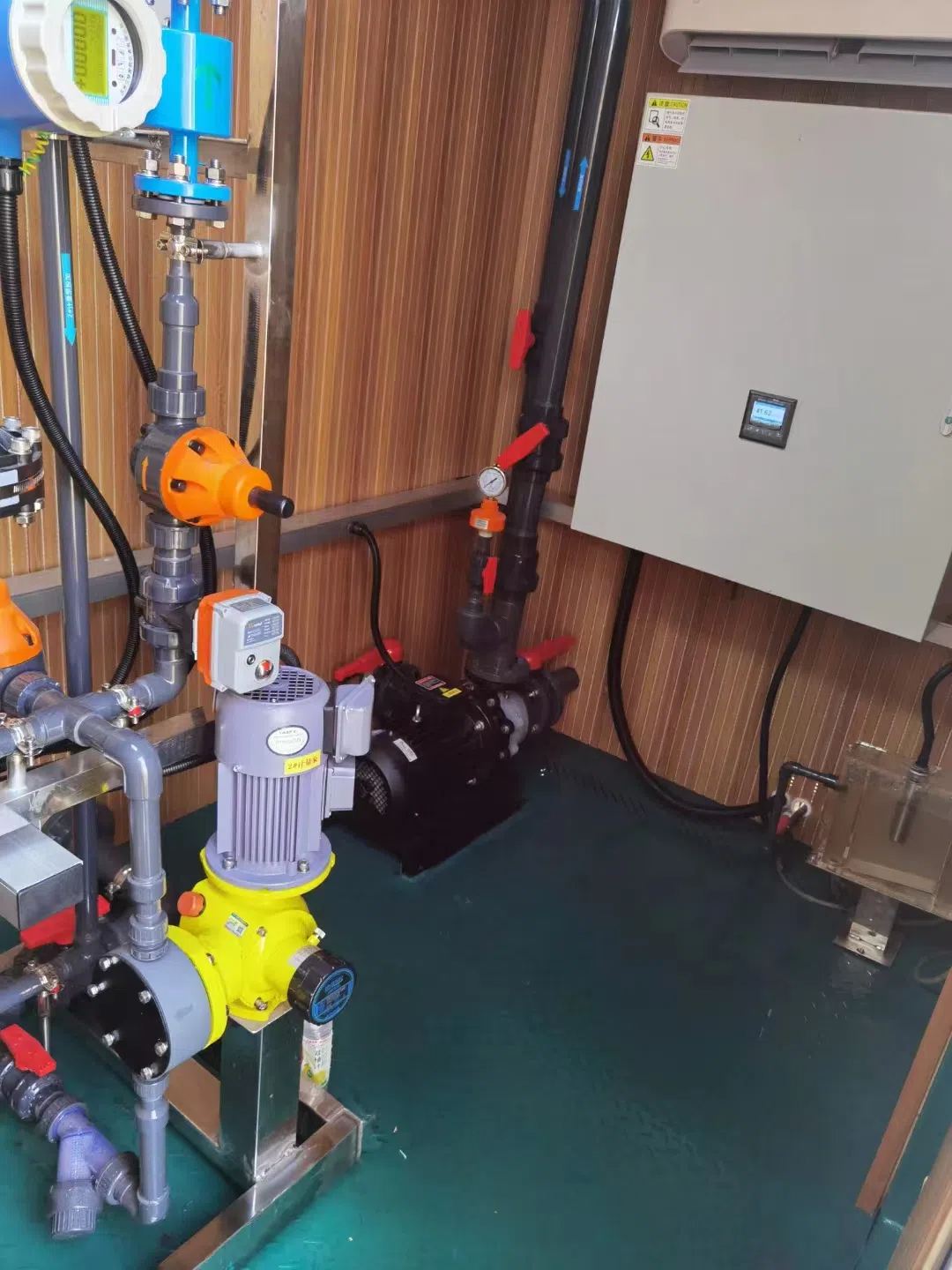

Main Application Scenarios
1.Monitoring and control in various production process fields.
2.Monitoring and treatment of pollutants such as wastewater and waste gas.
3.Dosing control and timed control for acid/base addition within specified ranges.
4.Monitoring and treatment of surface water bodies such as rivers, lakes, and landscapes.
5.Other scenarios requiring water quality parameter measurement, including IoT and big data collection.
 |  |  |

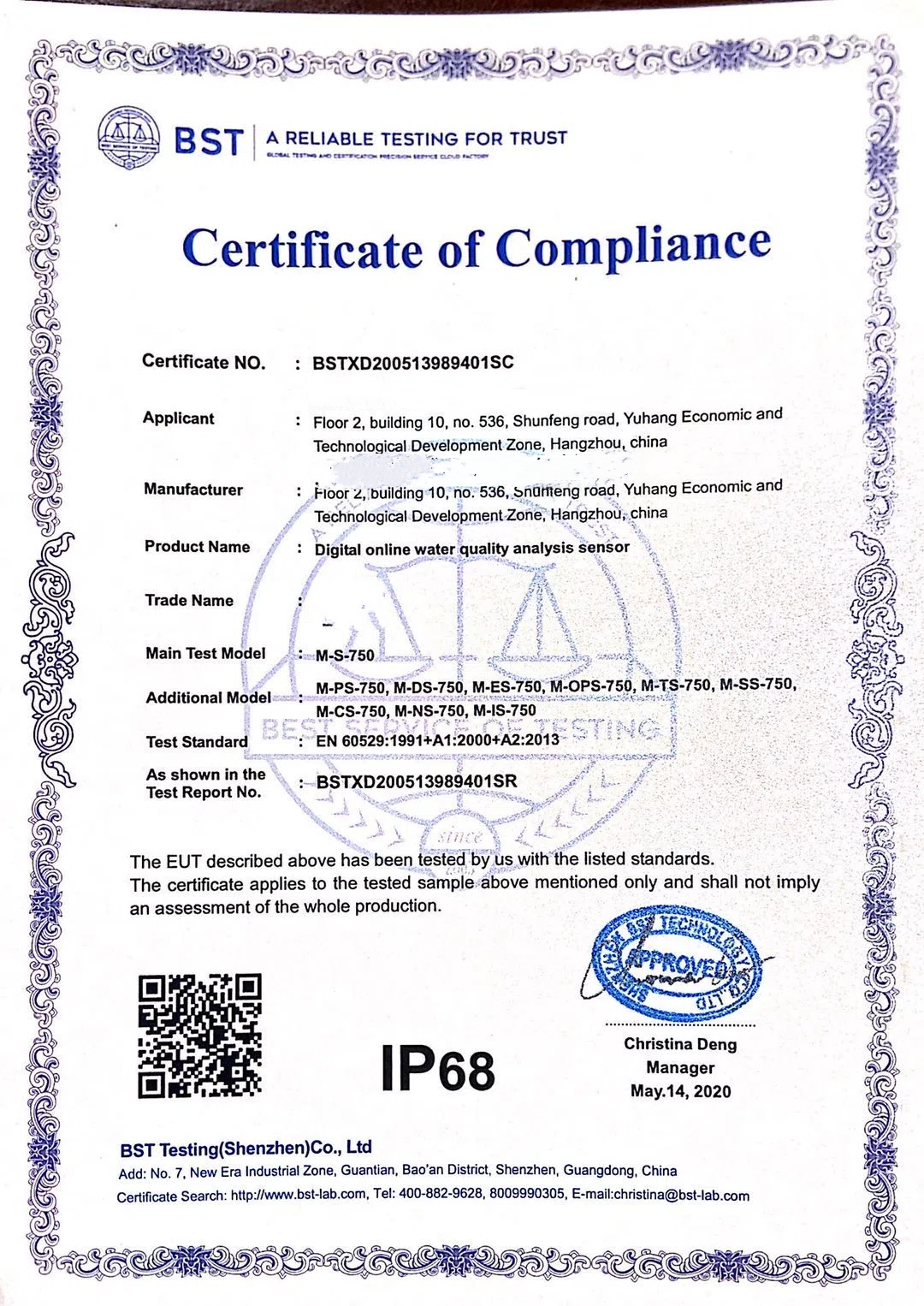

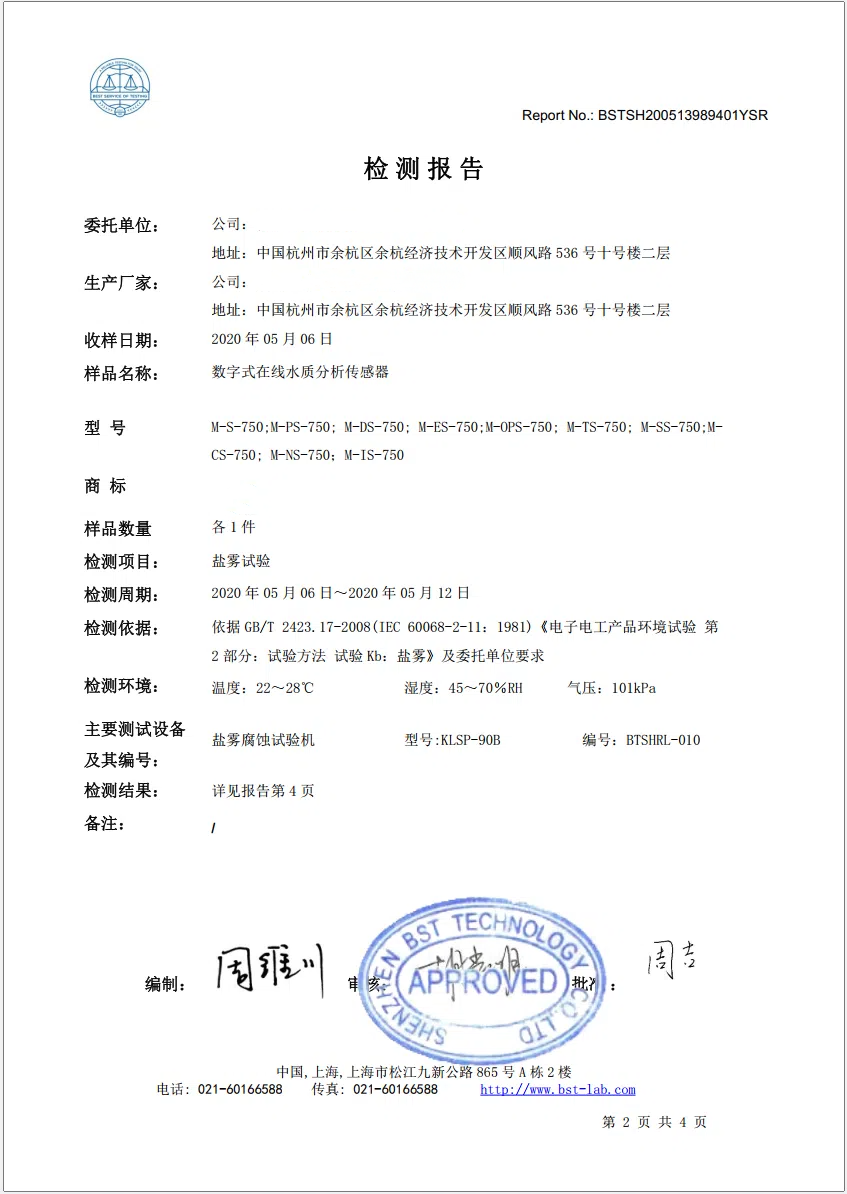

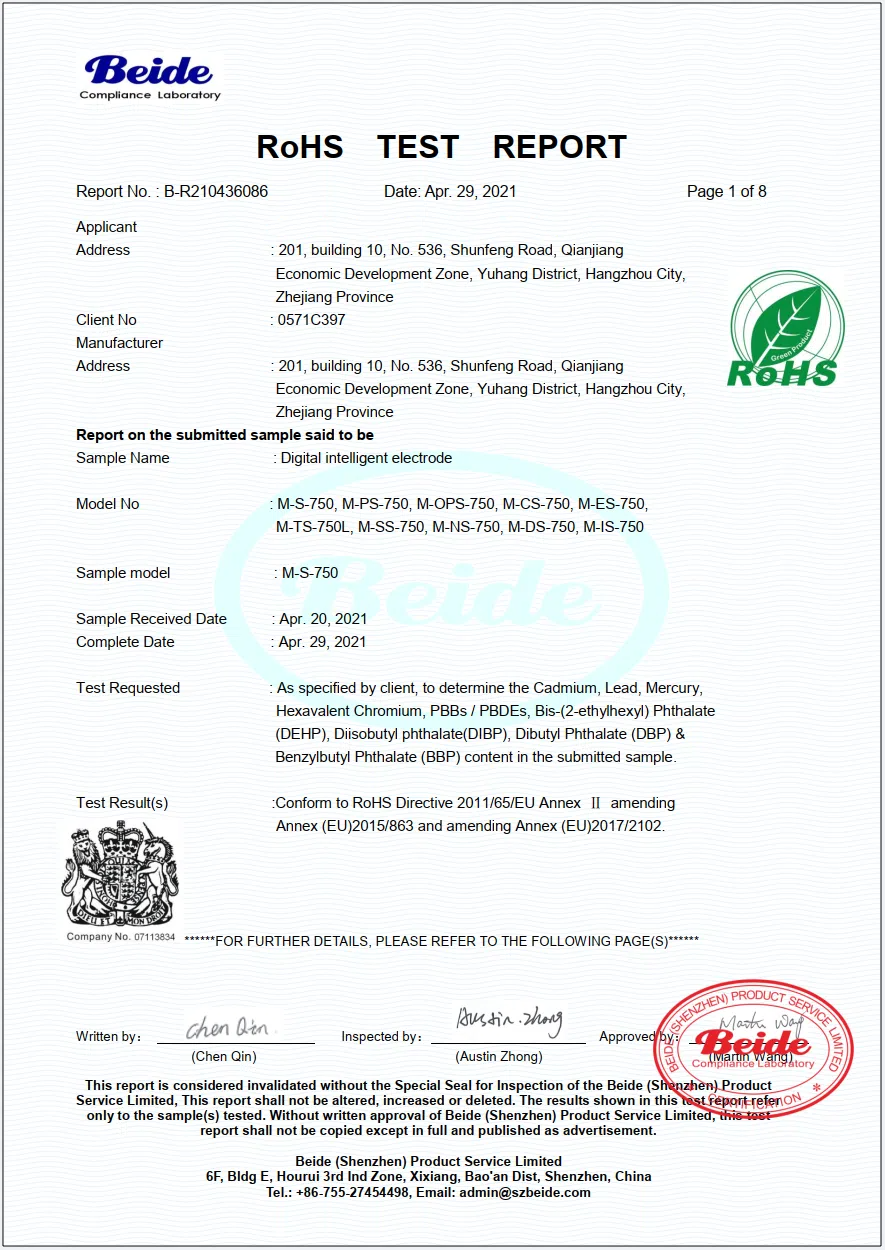

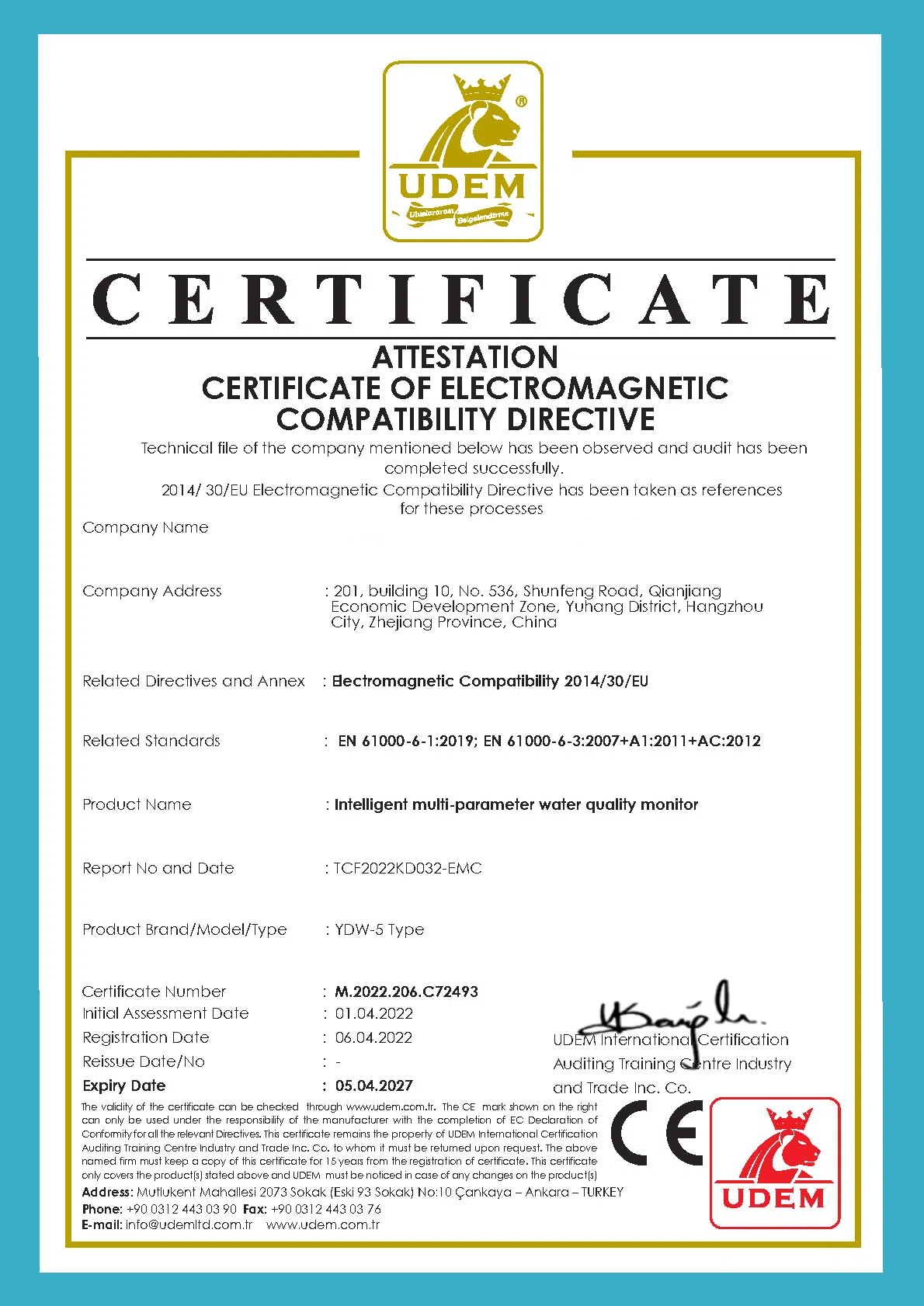

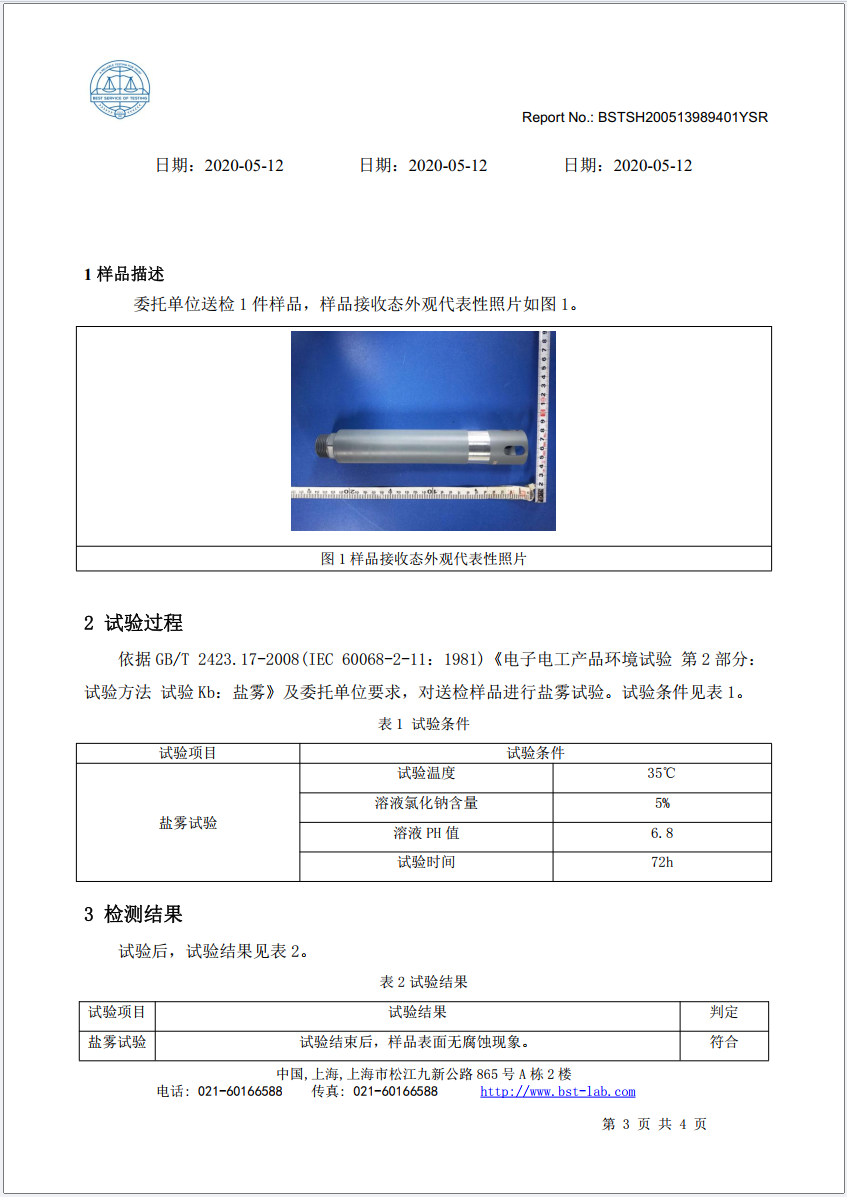

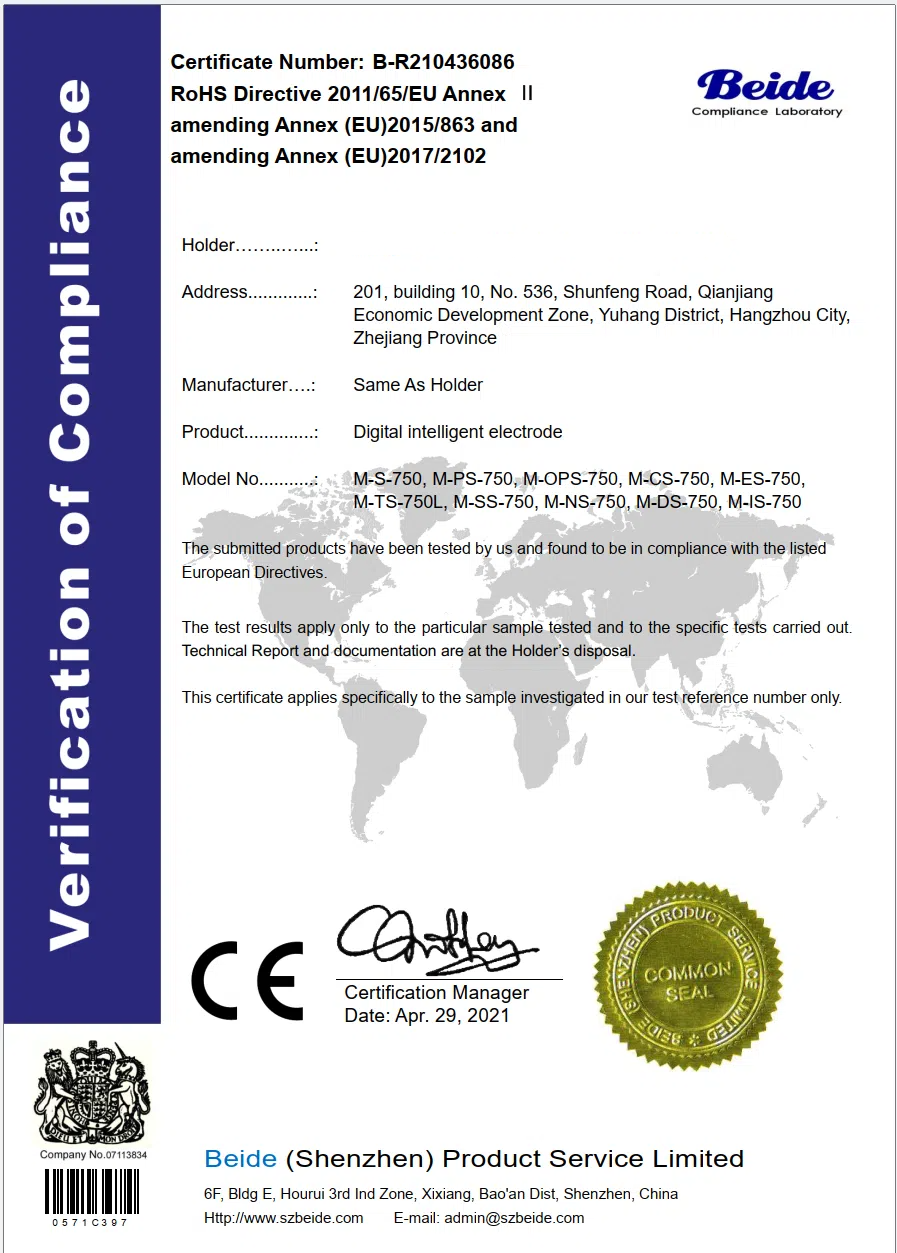

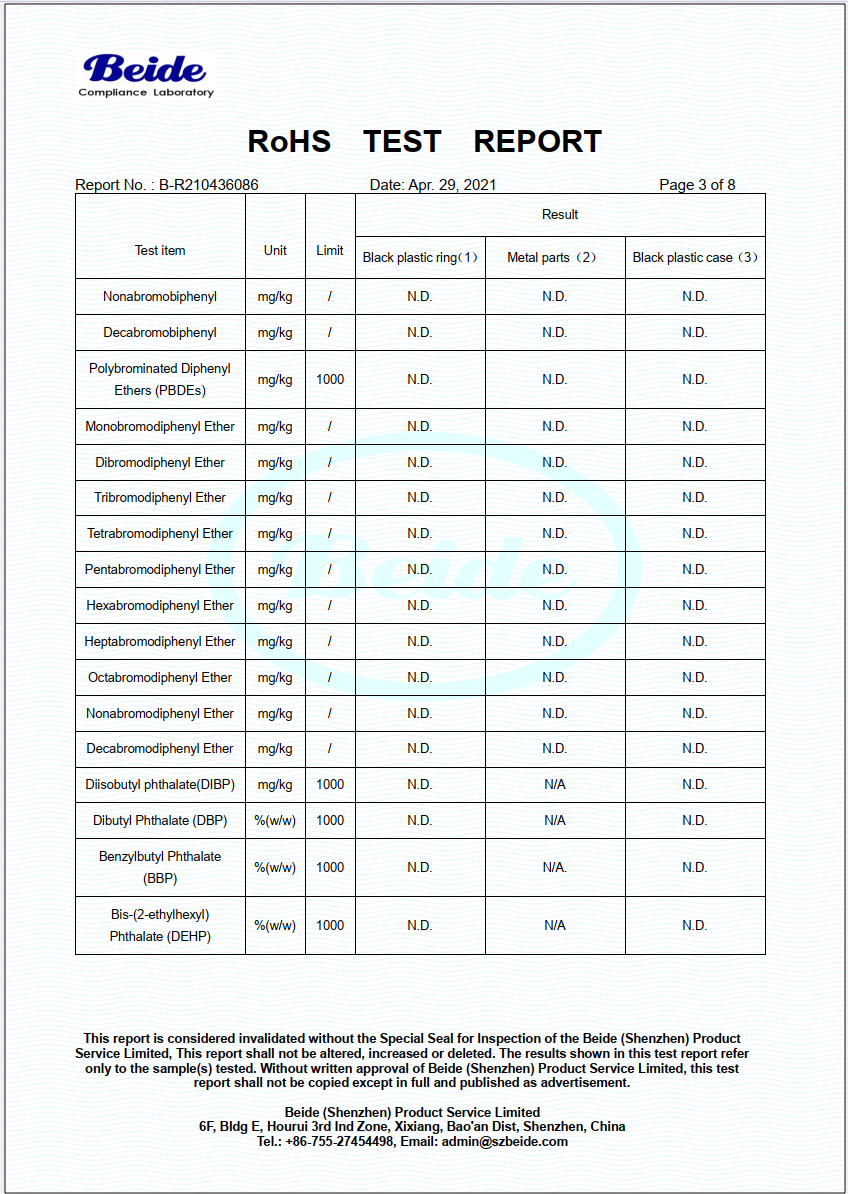

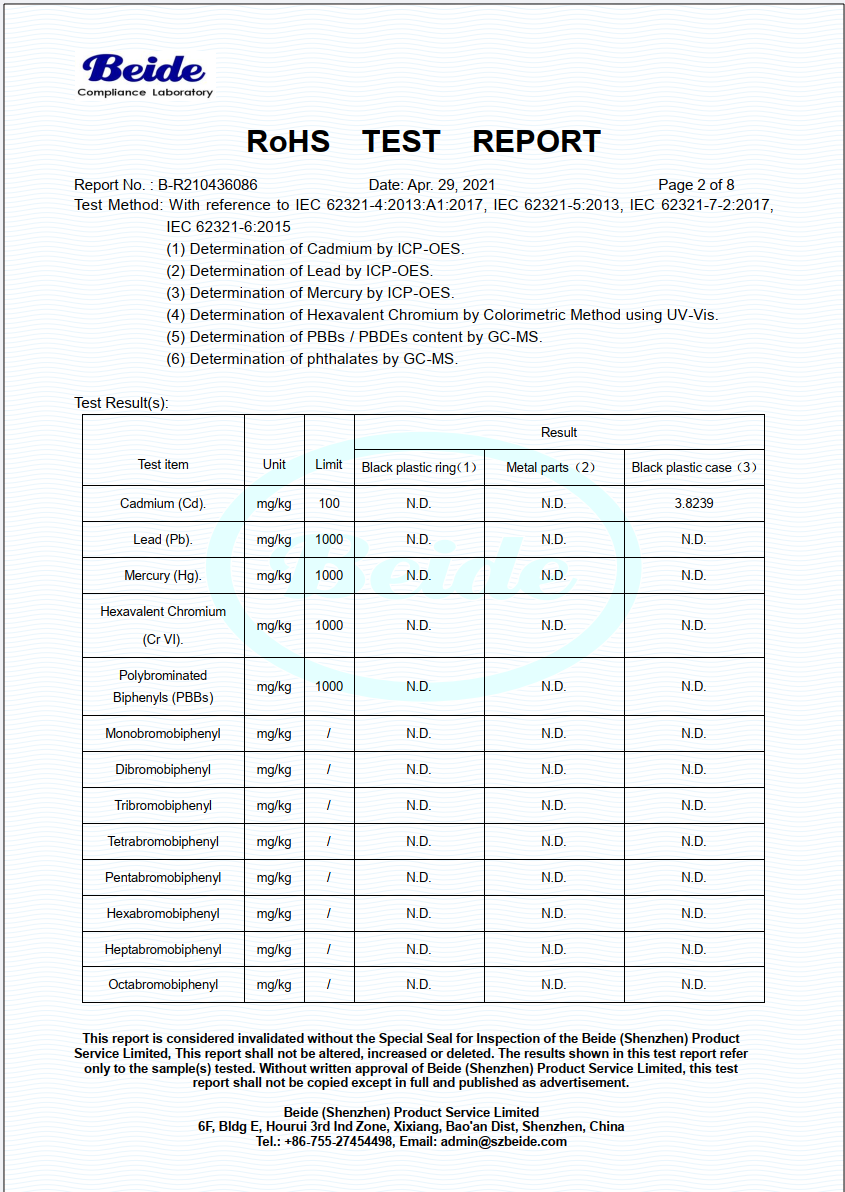

Multiple International Certifications: CE, IP68, RoHS, salt spray resistance, along with various domestic calibration certificates in China.
Customized Solutions by a Professional Team
More Durable Electrodes and Sensors: Designed for extended use and work seamlessly with our multi-parameter water quality analysis stations for greater convenience.
User-Friendly Interface: Even beginners can easily complete installation, calibration, and operation.
One-Year Warranty Provided (excluding consumables, starting from the date of receipt).
48-Hour Emergency Support: Global technical response network.
Multilingual Engineering Team: Fluent in English and Japanese for seamless collaboration.
 |  |  |  |
 |  |  |  |
