Technical Specifications

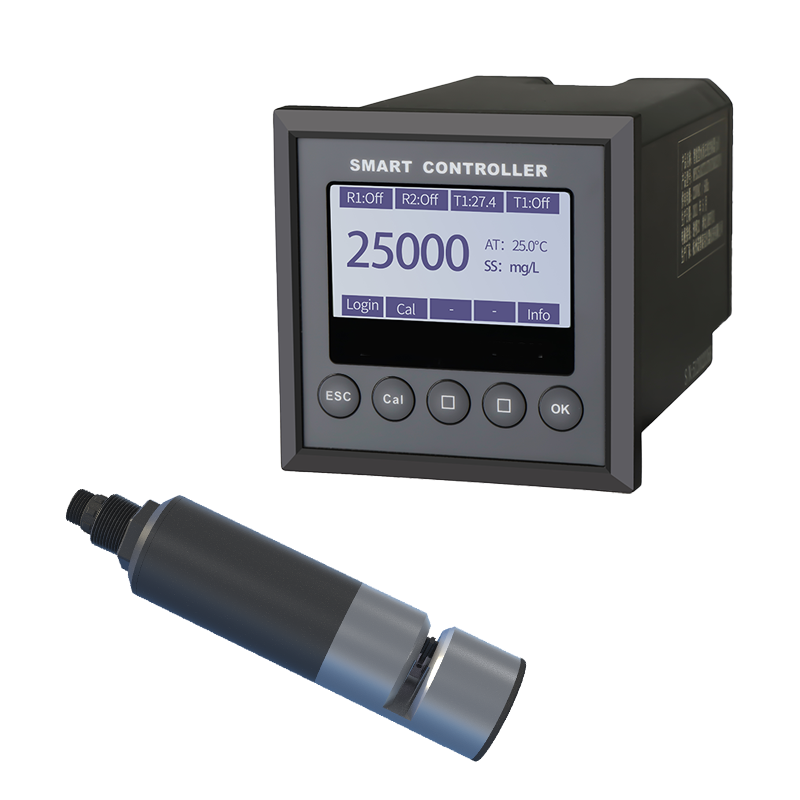

Smart Suspended Solids (SS) Controller：SC5108
Measuring Range: 0–10000/20000/30000mg/L
Accuracy: 1%FS
Resolution: 1mg/L
Analog Output: One4–20 mA channel (Load<750Ω)
Control Function: Two relay outputs(220V/1A)
PowerSupply:220VAC/24VDC
Protection Rating: IP65
Instrument Dimensions: 96×96×143mm
Mounting Type: Panel-mounted
PanelCutoutSize:92×92mm
Technical Specifications
 |
| AS708 |
Series Online Suspended Solids (SS) Sensor：AS708
Measurement Principle: Optical Method
Pressure Rating: 0.3 MPa
Temperature Range: 0-60°C
Material: POM + Stainless Steel
Connection Type: 3/4 NPT
Applicable Environment: Surface Water, Process Water, Wastewater, etc.
Electrode Dimensions: φ50mm x 200mm (or Probe Dimensions: Ø50mm x 200mm)
Multiple International Certifications: CE, IP68, RoHS, salt spray resistance, along with various domestic calibration certificates in China.
Customized Solutions by a Professional Team
User-Friendly Interface: Even beginners can easily complete installation, calibration, and operation.
48-Hour Emergency Support: Global technical response network.
Multilingual Engineering Team: Fluent in English and Japanese for seamless collaboration.
More Durable Electrodes and Sensors: Designed for extended use and work seamlessly with our multi-parameter water quality analysis stations for greater convenience.
 |  |  |  |
 |  |  |  |
