Technical Specifications

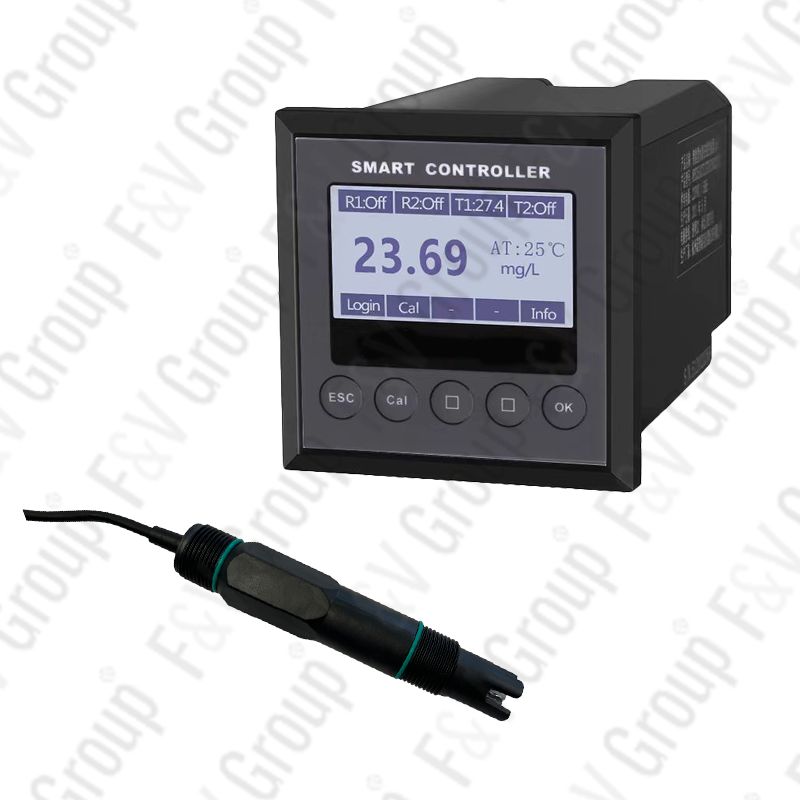

Smart Water Salinity Controller: SC5104S
Measuring Range: 0–5000/10000 mg/L
Accuracy: 1% FS
Resolution: 0.01 mg/L, 1 mg/L
Analog Output: 1 × 4–20 mA (Load < 750Ω)
Control Functions: 2 relay outputs (220V/1A)
Power Supply: 220VAC / 24VDC
Protection Level: IP65
Instrument Size: 96 × 96 × 143mm
Mounting Method: Panel mounting
Panel Cutout Size: 92 × 92mm
 |
| AS704SS |
Technical Specifications

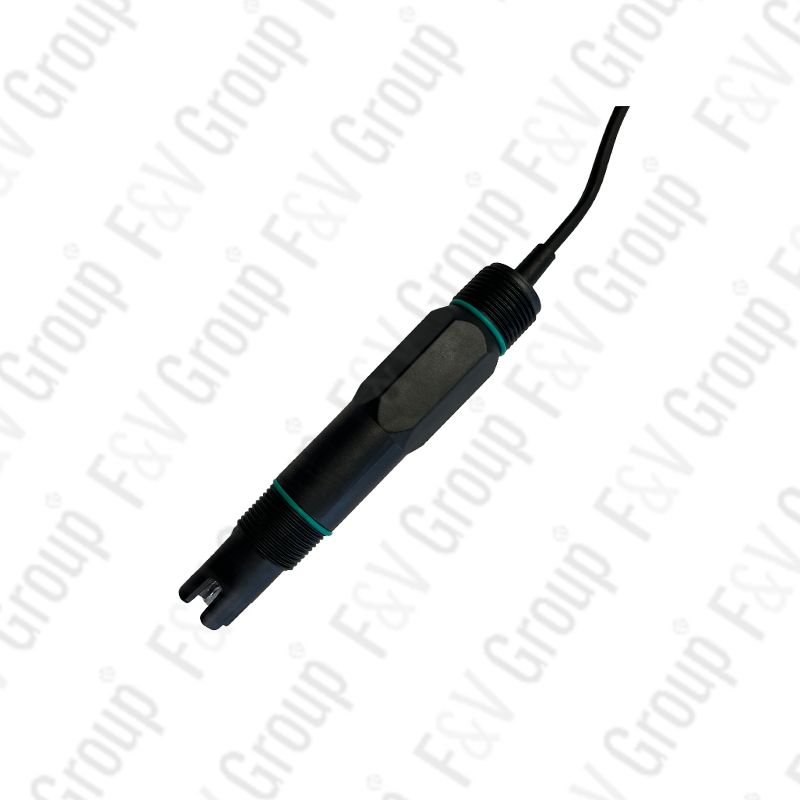

Online Salinity Sensor:AS704SS
Measurement Principle:
Conductivity Method
Pressure Resistance: 0.3 MPa
Temperature Range: 0–60℃
Electrode Size: φ28mm × L150mm
Material: Plastic Alloy
Connection Method: 3/4 NPT at both ends
Applicable Environments: Surface water, sewage, etc.
Multiple International Certifications: CE, IP68, RoHS, salt spray resistance, along with various domestic calibration certificates in China.
Customized Solutions by a Professional Team
User-Friendly Interface: Even beginners can easily complete installation, calibration, and operation.
48-Hour Emergency Support: Global technical response network.
Multilingual Engineering Team: Fluent in English and Japanese for seamless collaboration.
More Durable Electrodes and Sensors: Designed for extended use and work seamlessly with our multi-parameter water quality analysis stations for greater convenience.
 |  |  |  |
 |  |  |  |
