The SC5100 series intelligent controller is a new-generation product developed by our company based on over fifteen years of industry experience and in-depth research into user habits. This series features powerful functionality, high measurement accuracy, strong reliability, excellent anti-interference capability, and user-friendly operation.
Depending on its configuration, the controller can measure more than 30 water quality parameters, including:
pH, ORP, conductivity, TDS, salinity, water hardness, residual chlorine, dissolved oxygen, turbidity, suspended solids concentration, fluoride ion, chloride ion, ammonia nitrogen, bromide ion, nitrate, nitrite, cyanide, thiocyanate, sodium ion, potassium ion, silver ion, iodide ion, sulfide ion, hexavalent chromium, copper ion, lead ion, cadmium ion, and others.
| | |
| Smart Conductivity Controller with graphite electrode | Smart Conductivity Controller with stainless steel electrode | Smart Conductivity Controller with platinum-coated glass electrode |
General Function Description of SC5100 Series Controllers
Item | Description |
Input Impedance | >1012 Ω |
Key Features | Innovative modular circuit design using 32-bit MCU and high-performance components. Combines advanced algorithms to achieve stable and accurate measurements with excellent anti-interference capabilities. |
User Interface | Chinese/English switchable; intuitive “Navigation Menu” for simple and user-friendly operation. |
Information Inquiry | Unique “Info” one-key inquiry function to view current configuration and operation records. |
Display | High-contrast LCD with UV-resistant backlight; resolution: 192×96 |
Power Supply | 100~245VAC, 50/60Hz (optional 24VDC); power consumption < 10W |
Temperature Compensation | Supports Pt100/Pt1000/NTC10k/manual setup/automatic or no compensation; offset adjustable |
Calibration | Two-point calibration; previous calibration data automatically recorded and retrievable |
Relay Output | Two standard relay outputs; contact capacity 220V/1A; supports six working modes; suitable for chemical dosing, anti-pollution control, and timed control. |
Current Output | Two 4-20 mA outputs (optional); transmission error correction; max load 500 Ω |
Digital Communication | RS485 opto-isolated digital output; standard Modbus-RTU protocol (optional) |
Function Extension | Supports sensor cleaning, maintenance reminders, calibration alerts, and scheduled notifications |
Dimensions | External: 96×96×143 mm; Panel cutout: 92×92 mm; enclosure depth >133 mm |
Sensor | Technical specifications depend on selected sensor model |
Operating Environment | -10 ~ 60°C (14 ~ 140°F), 0-85% RH, non-condensing |
Storage Environment | -20 ~ 70°C (-4 ~ 158°F), 0-90% RH, non-condensing |
Security | Two-level password protection |
Protection Grade | IP65 |
Installation | Panel mounting |
Weight | Approx. 0.5 KG |
Controller Technical Specifications
Model: SC5104
Measuring Range: 0–2000 μs/cm, 0–20000 μs/cm
Accuracy: 1%FS
Resolution: 1 μs/cm
Analog Output: One 4–20 mA channel (Load < 750Ω)
Control Function: Two relay outputs (220V/1A)
Power Supply: 220VAC / 24VDC
Protection Rating: IP65
Instrument Dimensions: 96 × 96 × 143 mm
Mounting Type: Panel-mounted
Panel Cutout Size: 92 × 92 mm
Sensor Technical Specifications
 | Online Conductivity Sensor Model: AS704 |
 | Online Conductivity Sensor Model: AS704S |
 | Online Conductivity Sensor Model: AS704F Electrode Constant: 10.0 Temperature Range: 0–60℃ Housing Material: PPS Applicable Environments: Strong acids and alkalis, organic solvents, high-salinity and corrosive wastewater |

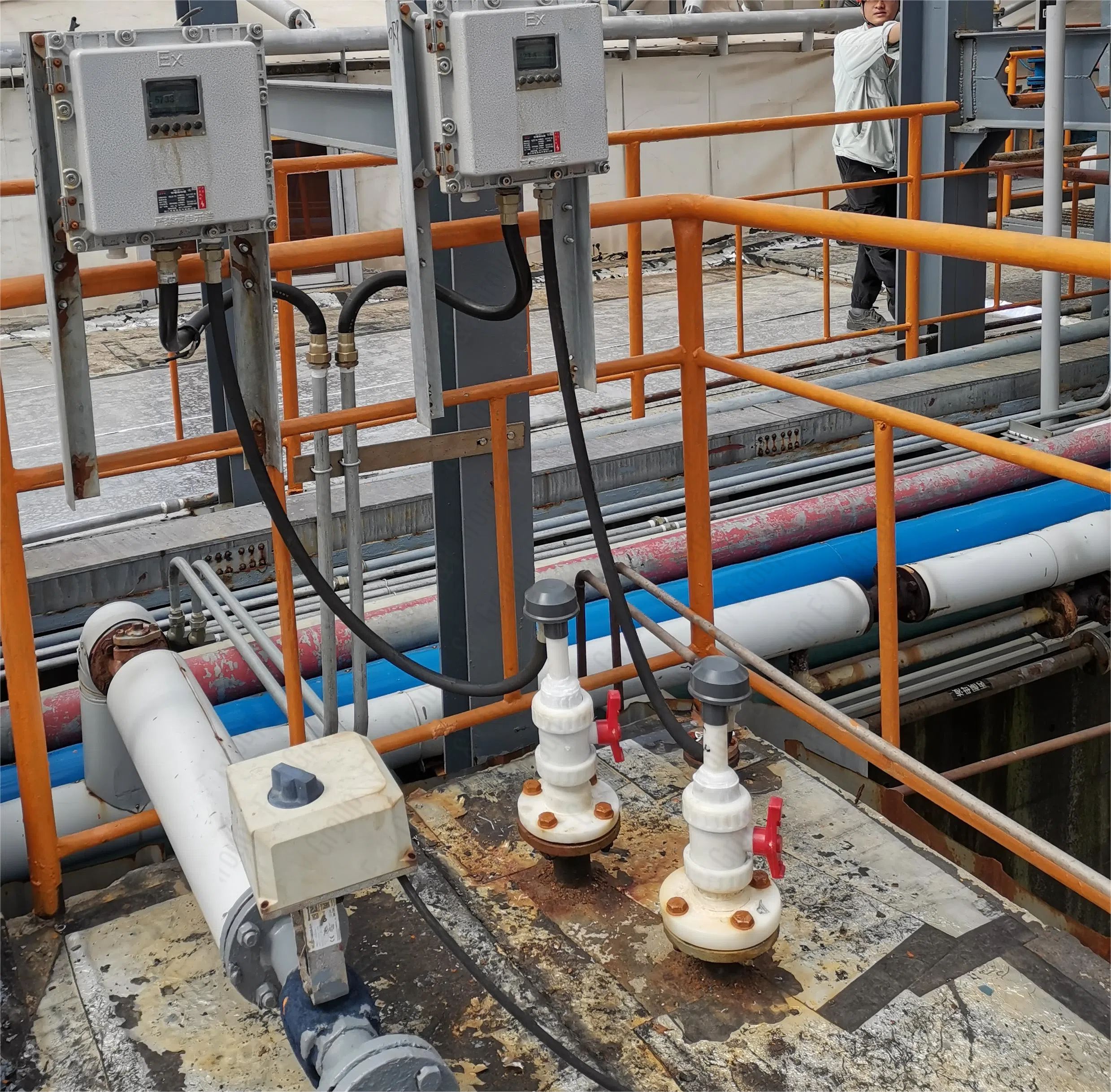

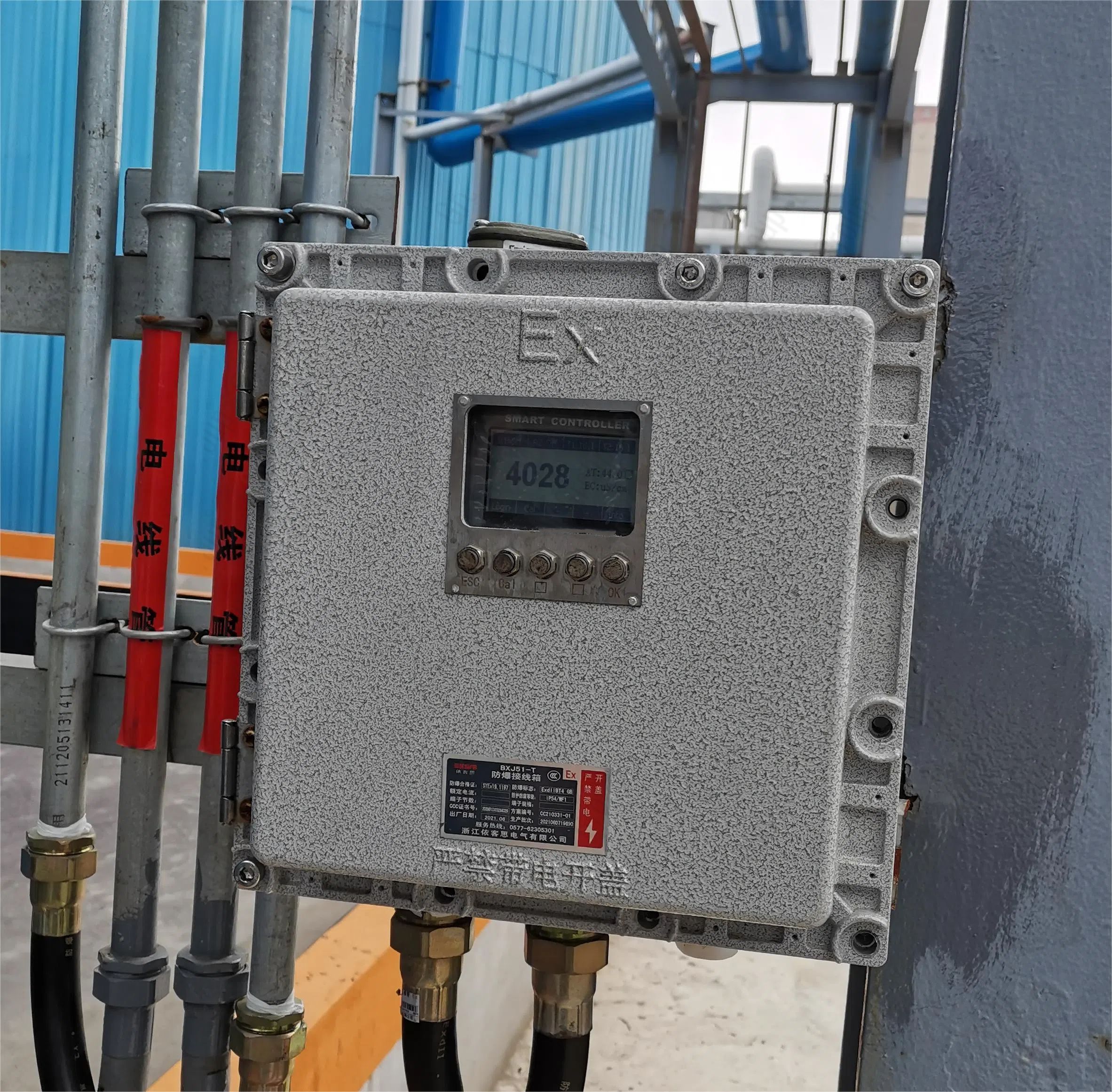

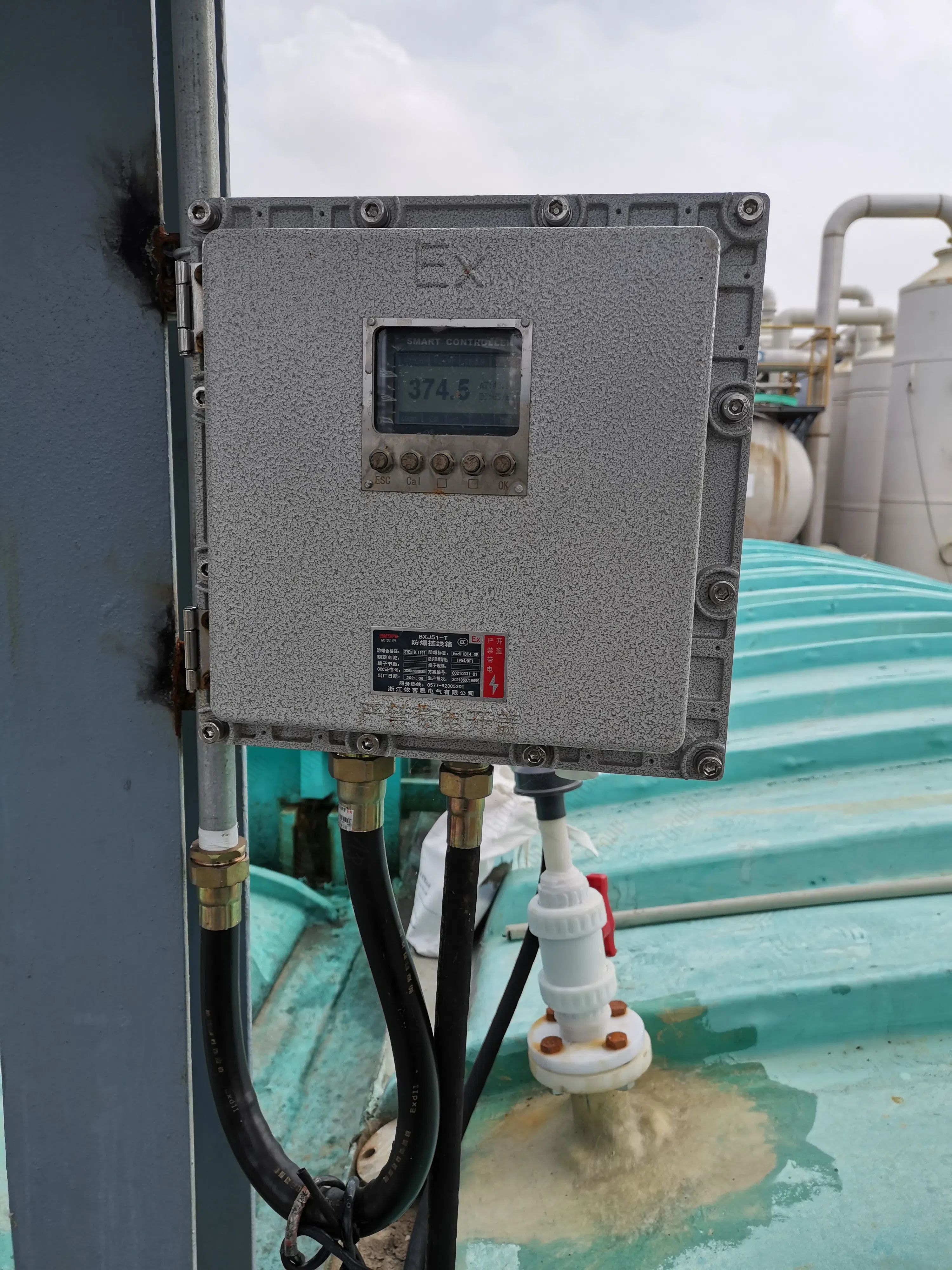

Main Application Scenarios
1.Monitoring and control in various production process fields.
2.Monitoring and treatment of pollutants such as wastewater and waste gas.
3.Dosing control and timed control for acid/base addition within specified ranges.
4.Monitoring and treatment of surface water bodies such as rivers, lakes, and landscapes.
5.Other scenarios requiring water quality parameter measurement, including IoT and big data collection.
 |  |  |
Multiple International Certifications: CE, IP68, RoHS, salt spray resistance, along with various domestic calibration certificates in China.
Customized Solutions by a Professional Team
More Durable Electrodes and Sensors: Designed for extended use and work seamlessly with our multi-parameter water quality analysis stations for greater convenience.
User-Friendly Interface: Even beginners can easily complete installation, calibration, and operation.
One-Year Warranty Provided (excluding consumables, starting from the date of receipt).
48-Hour Emergency Support: Global technical response network.
Multilingual Engineering Team: Fluent in English and Japanese for seamless collaboration.
 |  |  |  |
 |  |  |  |
