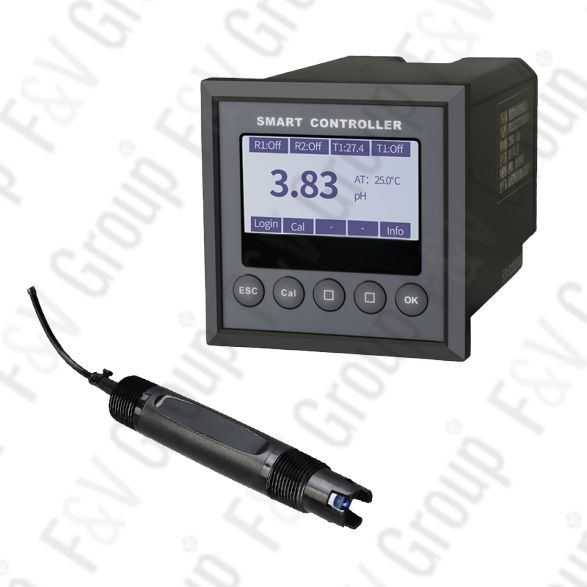

Intelligent Online pH/ORP Water Quality Analyzer is a high-precision instrument designed for continuous monitoring of pH or ORP levels in various water treatment environments, such as wastewater, surface water, and process water. It features a robust controller paired with a durable electrochemical glass electrode, offering real-time data, reliable outputs, and multiple installation options for seamless integration into industrial control systems.
|
| Intelligent Online pH/ORP Analyzer |
Main Features
Wide Measurement Range：0–14 pH
High Accuracy：±1% FS
Resolution：0.01 pH
Stable Signal Output：
1 × 4–20 mA analog output (load <750Ω)
Optional RS485 digital output (ModBus protocol)
Control Function：2 × Relay outputs (220V/1A) for process automation
Power Supply：220VAC or 24VDC
Protection Rating：IP65, suitable for harsh industrial environments
Panel Mount Design：
Instrument Size: 96 × 96 × 143 mm (H×W×D)
Panel Cutout: 92 × 92 mm
Sensor Specifications
Measurement Principle：Electrochemical glass electrode
pH Range：0–14 pH
Pressure Rating：0.3 MPa (Max: 0.6 MPa)
Temperature Range：0–60°C
Electrode Size：φ28 mm × L150 mm
Body Material：Polycarbonate (PC)
Junction Material：Large-area porous PTFE
Thread Connection：Top & Bottom 3/4" NPT
Cable Length：10 meters (customizable)
Application Environments：Ideal for wastewater, surface water, and general industrial water applications
|
|
 |  |
 |  |
 |  |
 |  |
 |  |
Municipal and industrial wastewater treatment
Surface water and environmental monitoring
Chemical and pharmaceutical industries
Food and beverage processing
Aquaculture water quality management
 |  |  |  |
| Water & Wastewater Treatment | Pharmaceutical | Chemical Industry | Food & Beverage |
20+ Global Certifications: CE, IECEx, SIL 2/3, API 670, and ISO 9001 compliance.
48-Hour Emergency Support: Worldwide technical response network.
Multilingual Engineering Teams: Fluent in EN/JP for seamless collaboration.
Extreme Environment Expertise: -200°C to 3000°C measurement solutions.
High-Performance Materials: Hastelloy C276.
Custom OEM/ODM Services: Rapid prototyping in 72 hours.
 |  |  |  |
 |  |  |  |
