In industrial measurement, flow meters play a crucial role. Among various flow measurement technologies, ultrasonic flow meters stand out due to their unique advantages, making them an ideal choice for many applications. But with a wide range of ultrasonic flow meters available on the market, how do you select the best one for your needs? This article will provide you with a clear guide.
Before diving into the selection process, let's explore why ultrasonic flow meters are so popular:
Non-Contact Measurement: Most ultrasonic flow meters do not require direct contact with the fluid. This means they won't contaminate the fluid and are immune to corrosion or wear from the fluid itself, making them particularly suitable for corrosive, abrasive, or high-purity fluids.
No Pressure Drop: Being non-intrusive, ultrasonic flow meters don't create additional pressure loss in the pipeline, which helps conserve pump energy.
Wide Turndown Ratio: They can measure a broad range of flow rates, from very low to high, offering great adaptability.
Easy Installation and Maintenance: ️ Some types of ultrasonic flow meters can even be installed without process shutdown, significantly reducing maintenance costs and downtime.
High Accuracy and Stability: ✨ Modern ultrasonic flow meter technology is mature, providing high accuracy and long-term stable measurement results.
Choosing an ultrasonic flow meter is like picking the right tool for the job – it requires careful consideration of your specific application. Here are several key factors to consider:
Ultrasonic flow meters are typically categorized based on their operating principles and design for either liquids or gases.
Liquid Ultrasonic Flow Meters: Suitable for fluids like water, oils, and chemicals. It's important to note that the fluid should not contain excessive bubbles or solid particles, as these can interfere with ultrasonic signal transmission.
Gas Ultrasonic Flow Meters: ️ Designed specifically for measuring gases such as air, natural gas, and industrial gases. They are sensitive to changes in gas density and pressure.
Steam Ultrasonic Flow Meters: ♨️ Specially engineered for high-temperature, high-pressure steam measurement, requiring specialized transducers and high-temperature resistant materials.
Our company offers a variety of ultrasonic flow meters suitable for different fluid types. Whether you're measuring clean water, wastewater, oil products, natural gas, or steam, we have a product solution for you.
The pipe material (e.g., carbon steel, stainless steel, PVC, cast iron) and diameter will influence the choice of transducers and the installation method.

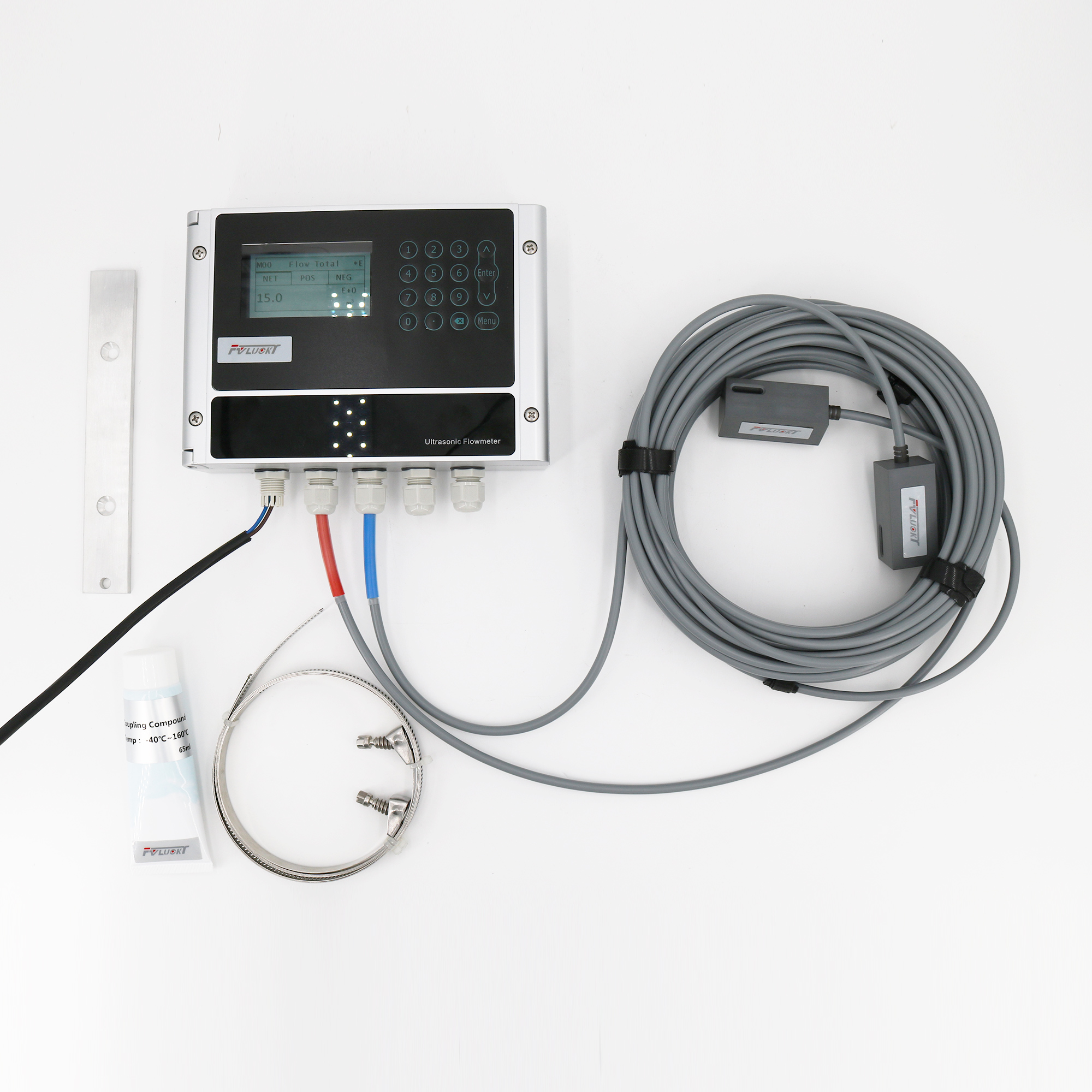

Clamp-on (Non-invasive): Transducers are clamped onto the outside of the pipe, eliminating the need to break the pipeline. This method is suitable for various pipe materials and sizes and is the simplest to install.
Insertion Type: Transducers are inserted into the pipe through small holes. This is suitable for larger diameter pipes but requires drilling.
In-line (Spool Piece): The flow meter is integrated into a standard pipe section and installed directly into the pipeline. This type typically offers the highest measurement accuracy, but installation requires cutting the pipe.
Our product range includes clamp-on, insertion, and in-line installation methods, capable of meeting measurement needs for pipe diameters from DN15 to DN6000 and even larger, compatible with various common pipe materials.
Different applications have varying requirements for flow measurement accuracy. For instance, trade custody transfer or material balance demand very high accuracy, while general process monitoring might have more relaxed requirements.
High Accuracy: ✨ Typically within ±0.5%, suitable for precision metering.
Standard Accuracy: ✅ Generally within ±1% to ±2%, suitable for most industrial process control.
Our ultrasonic flow meters utilize advanced digital signal processing technology, providing high accuracy and excellent repeatability to ensure your measurement data is reliable and precise.
Medium and Ambient Temperature: ️ Ensure the flow meter's temperature resistance range aligns with your actual operating conditions.
Medium Pressure: PSI Select transducers and instruments that can withstand the pipeline pressure.
Hazardous Area Requirements: If used in flammable or explosive areas, it's crucial to select explosion-proof flow meters compliant with relevant classifications (e.g., ExdIICT6).
Ingress Protection (IP) Rating: ️ Consider the level of dust and moisture in the installation environment and choose an appropriate IP rating.
Our product portfolio offers a wide range of temperature and pressure adaptation, along with various explosion-proof and high IP-rated options, ensuring stable operation even in harsh industrial environments.
Modern industrial sites often require flow data to be easily integrated into DCS, PLC, or SCADA systems.
Analog Output: Such as 4-20mA, commonly used for connecting with PLCs or DCS.
Digital Output: Such as pulse, RS485 (Modbus RTU), offering more flexible data transmission.
Fieldbus Protocols: Such as Hart, Profibus, Foundation Fieldbus, suitable for more complex automation networks.
Our ultrasonic flow meters support multiple mainstream output signals and communication methods, allowing seamless integration into your existing control systems for intelligent flow monitoring and management.
Choosing the right ultrasonic flow meter isn't complicated; the key is to clearly define your needs and thoroughly understand the product characteristics. By comprehensively considering fluid type, pipe conditions, accuracy requirements, environmental factors, and data integration needs, you'll be able to make an informed decision.
If you have any questions during the selection process or require more detailed technical support, please feel free to contact our professional team. We will customize the most optimized and cost-effective ultrasonic flow meter solution for your specific working conditions, helping your production run efficiently and stably! ✉️
