| GX Series Mechanical Diaphragm Metering Pump | 2GX Series Mechanical Diaphragm Metering Pump |
Mechanical drive diaphragm, no diaphragm guard plate on the material side, easy for materials to pass through, PVC, PVDF, 316SS and other pump head materials are optional, self-cleaning one-way valve structure.
Variable eccentric structure adjustment, to ensure that the flow pulsation changes smoothly, suitable for a variety of harsh working environment; flow adjustment can be achieved in downtime or running state.
Using oil bath lubrication, the driving parts have a long working life.
When selecting the 2GX series, two different media or one medium can be transported at the same time; the double-head flow rate can be adjusted separately, and the adjustment range is larger; compared with the single-head pump pulse, the pulse can be reduced by 50%, the transportation is smoother, the motor utilization efficiency is higher, and the performance-to-price ratio is higher.
Power supply: 380V/220V-50Hz/60Hz/ three-phase / single-phase.
Frequency conversion controller, receive external control signal, adjust stroke speed, input signal: 4-2mA analog signal.
The motor controller controls the three-phase motor in the "on / stop" mode and adjusts the output flow.
Technical Data
Single head Max. flow: 2100L / H
Double head Max. flow: 4200L / H
Max. discharge pressure: 8bar
Adjustment ratio: 10: 1
steady state accuracy: ± 2%
Suction lifting height: up to 2.5m water column
Max.ambient temperature: +40 °C
Features and Advantages
Variable eccentric adjustment.
The change of flow pulsation is smooth.
Suitable for harsh operating environment, smooth operation
Accurate and Stable Dosing Control
Our metering pumps offer high-precision flow adjustment with an accuracy of up to ±1%, ensuring every drop is precisely dosed. Ideal for applications such as RO systems, water treatment, chemical dosing, and pharmaceuticals.
Corrosion-Resistant and Compatible with Various Fluids
Wetted parts are available in PVDF, PTFE, 316L stainless steel, and more. Suitable for corrosive media such as acids, alkalis, sodium hypochlorite, and chemical solutions, ensuring long service life and low maintenance.
Compact Design and Easy Installation
Space-saving structure allows for flexible installation. Standard pipe fittings make it easy to integrate into existing systems quickly.
Comprehensive Technical Support and After-Sales Service
We offer professional selection guidance, remote commissioning support, on-site installation advice, and reliable after-sales service with sufficient spare parts in stock for long-term reliability.
Excellent Cost-Performance Ratio, Comparable to Top Brands
Our products match the performance of international brands at a more competitive price. A smart alternative for value-driven customers.
20+ Global Certifications: CE, IECEx, SIL 2/3, API 670, and ISO 9001 compliance.
48-Hour Emergency Support: Worldwide technical response network.

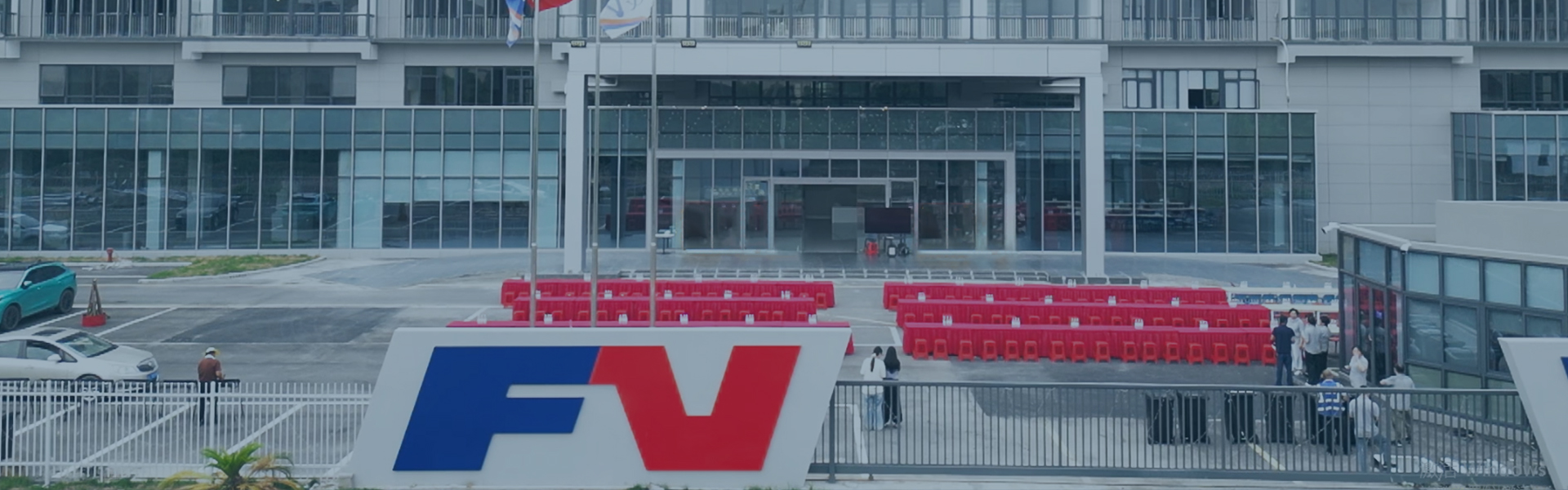

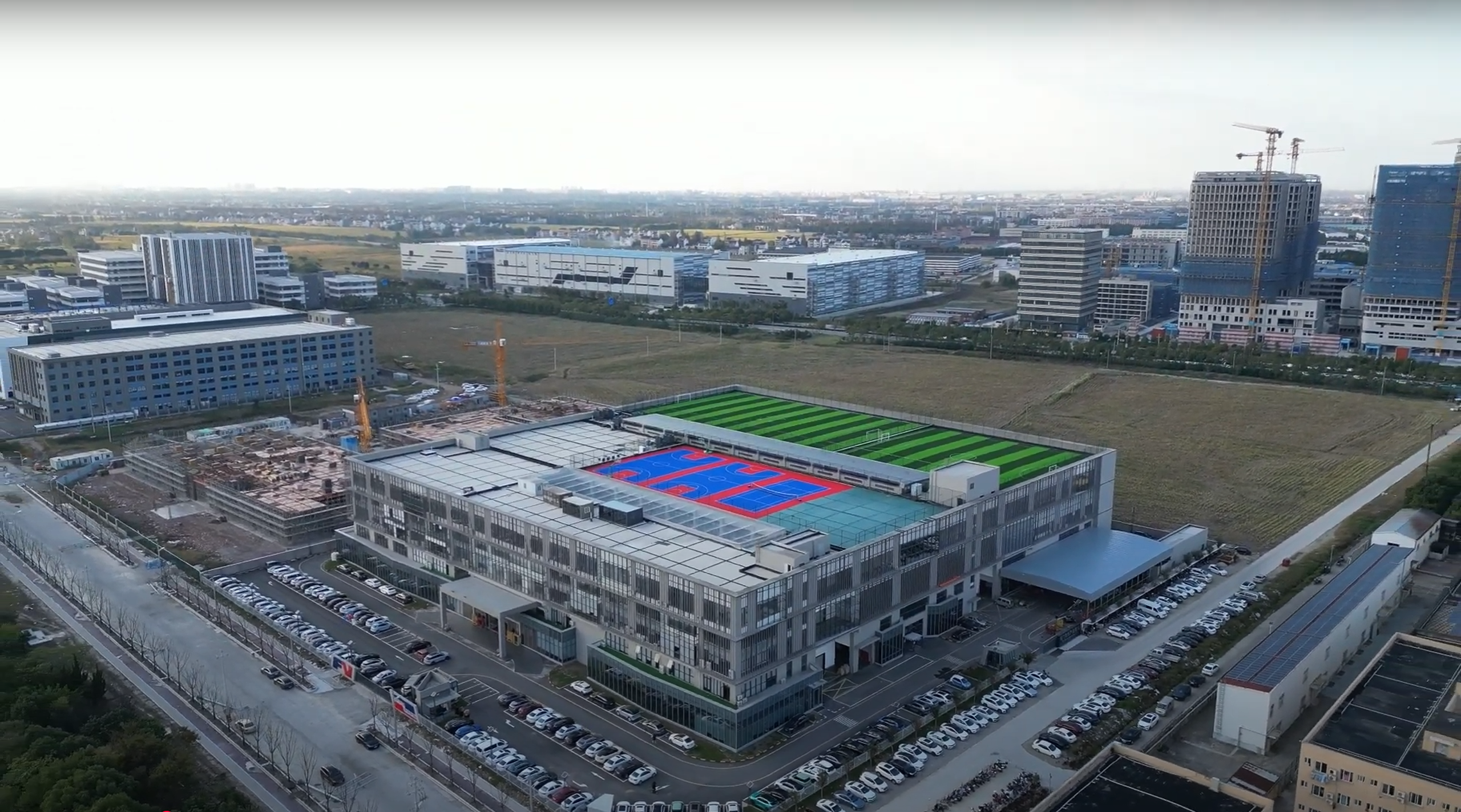

About F&V GROUP
F&V GROUP is a global industrial measurement company committed to delivering innovative, energy-efficient solutions for temperature, pressure, flow, and level applications. Established in 2021, the group unites strong international expertise with localized manufacturing and service capabilities.
Our journey began in 2011 with the founding of FVLUOKY in Wales, UK—a brand built on precision engineering and technological excellence. Over the years, FVLUOKY became a trusted name in industrial measurement across international markets.
To better serve the Asia-Pacific region, Fuyi Intelligent Instrument (Shanghai) Co., Ltd. was established in 2019, introducing FVLUOKY’s product lines to China with localized assembly, testing, and innovation. Fuyi products are fully certified (ISO, CE, TS, CPA) and tailored to regional industry needs.
With the formation of F&V GROUP in 2021, our brands were strategically integrated to accelerate global growth. By 2024, F&V had become a leading force in China and began expanding its footprint to international markets—bringing high-performance, sustainable measurement solutions to customers worldwide.
At F&V, we combine global innovation with local insight—driven by a commitment to quality, sustainability, and customer success.
 |
 |
