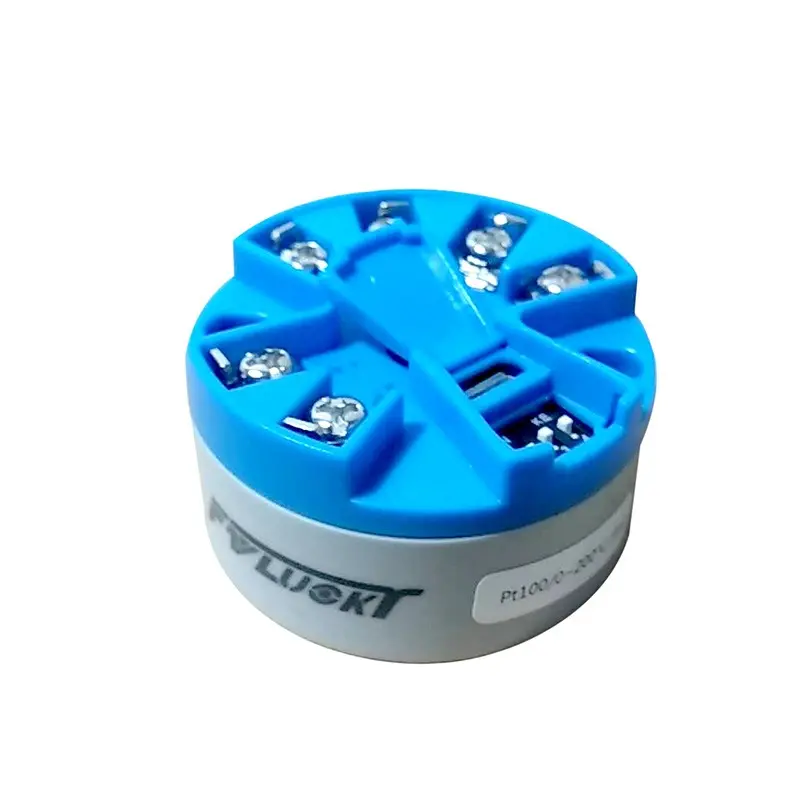

FT100 intelligent two-wire temperature transmitter. By connecting the sensor's RTD, thermocouple and other input signals, and linearizing the input signal, the 4-20mA standard signal and HART protocol are output.
Output: 4-20mA two-wire system with HART protocol
Configuration: DIP switch + PC programmable (with software)
Accuracy: ≤0.2% or 0.2K
Stability: ≤0.1 °C / year or 0.05% / year
Lightning protection: ±4000V (≤5 times)
Anti-pulse: ±3000~4000V
Temperature drift: 0.008% FS/1°C
Explosion-proof cast aluminum housing waterproof to IP67
Product safety performance reaches SIL2
