This product is no longer available
CMASS025

loading

CMASS025 CMASS025
CMASS025 CMASS025

T-CMASS025

Availability:
facebook sharing button
whatsapp sharing button
twitter sharing button
line sharing button
telegram sharing button
linkedin sharing button
pinterest sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Product Features

  • Nominal diameter (mm): DN08,DN25,DN40,DN50,DN80.

  • High sensitivity.

  • Accurate and stable measurement is implemented by the high precise digital signal process.

  • Compact design, small size, reliable performance, longer service life.









Application

Specially designed for chemical energy, natural gas field and cryogenic application environment

Model and Diameter


Model Nominal diameter Medium temp. Max.W.P Max.W.P

inch

mm

kg/min

Lb/min

CMASS008

1/4”

DN08

-200~+150℃

≤4 MPa

20

44

CMASS025

1”

DN25

-200~+150℃

≤4 MPa

200

440

CMASS040

1-1/2”

DN40

-200~+150℃

≤4 MPa

450

992

CMASS050

2”

DN50

-200~+150℃

≤4 MPa

650

1433

CMASS080

3”

DN80

-200~+150℃

≤4 MPa

2000

4409

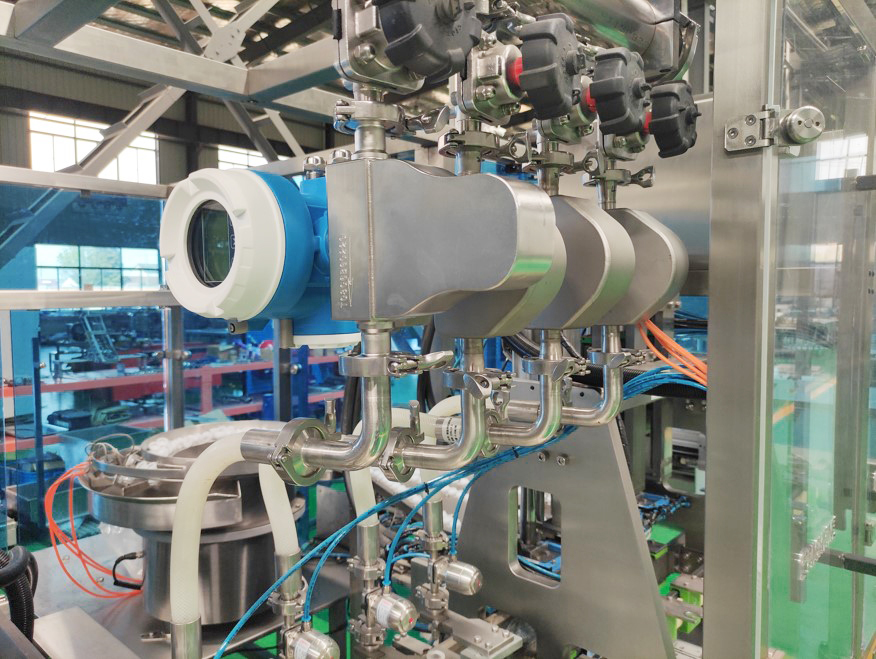

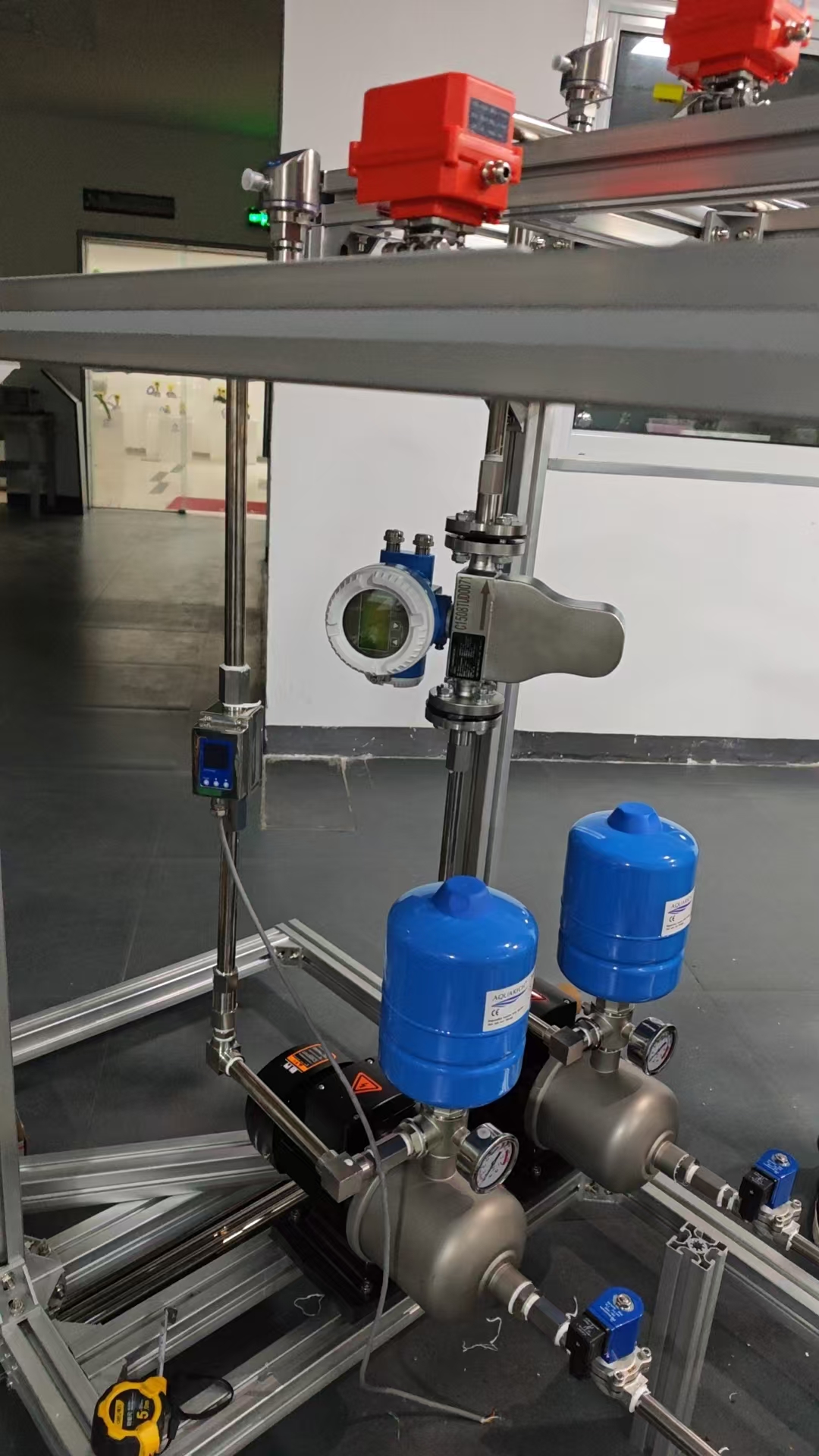

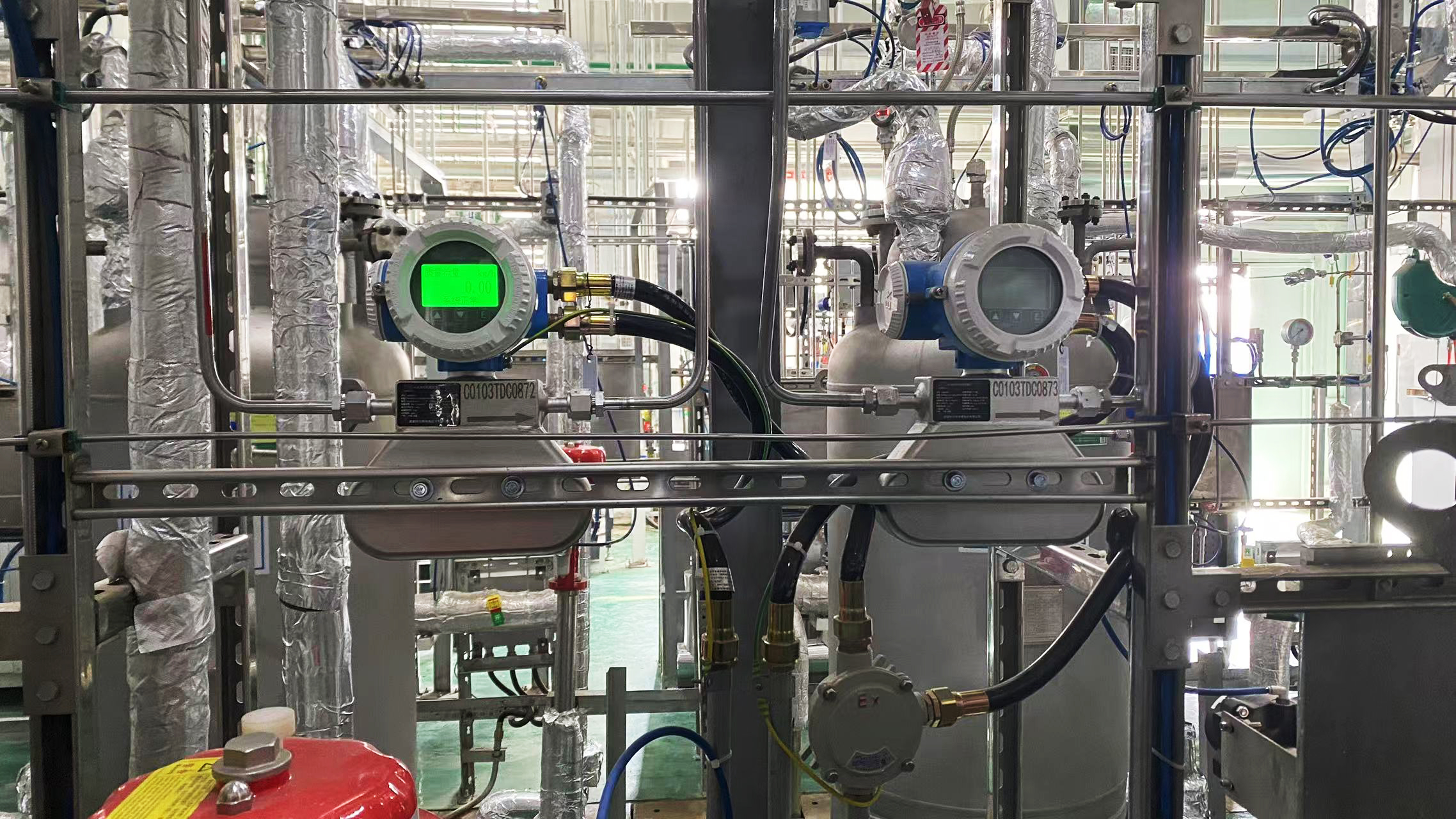

Product Working Condition Display
半导体厂务端应用案例上海正帆1 空分装车计量 南通食品灌装 广州兴丰LNG工厂
盐化工 蒸汽1 医药化工 加药装置
