The MTS-750L low-range turbidity electrode employs our proprietary invention patent (Patent No. ZL201710844076.6) — a method for measuring low turbidity using a laser amplitude-modulated light source. The measurement circuit is integrated within the sensor housing, and raw signals are directly converted into standard digital output. Immune to ambient light interference, it provides stable, sensitive, and repeatable turbidity analysis results. It fully utilizes the technical advantages of digital sensors and is ideal for applications such as tap water, drinking water, and ultrapure water.
|
| Low-Range Digital Intelligent Turbidity Electrode |
Technical Specifications
Measurement Range: 0–10/20 NTU
Resolution: 0.01 NTU
Accuracy: <1% FS
Stability: ±1% FS/year
Detection Limit: 0.03 NTU
Temperature Compensation: 18B20
Temperature Drift: ±0.1% FS/°C (within compensation range)
Response Time: ≥90% within 30 seconds
Power Supply: 12–24 VDC
Power Consumption: <1 W
Cable Length: Standard 5 m (customizable upon request
Output Signal: RS485 (Standard Modbus RTU Protocol)
Polling Interval: ≥50 ms
Operating Temperature: 0–60°C
Dimensions: φ50 × 200 mm
Thread Connection: 3/4 NPT
Housing Material: POM (customizable)
Weight: Approx. 320 g
Protection Rating: IP68
Municipal and industrial wastewater treatment
Surface water and environmental monitoring
Chemical and pharmaceutical industries
Food and beverage processing
Aquaculture water quality management
 |  |  |  |

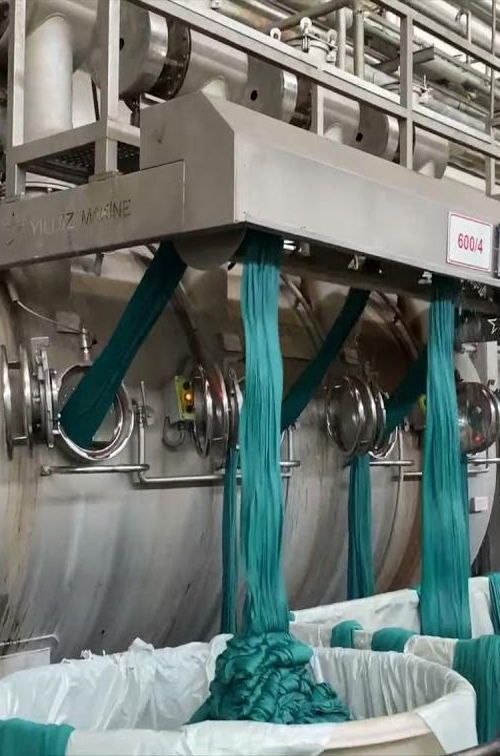

| Water & Wastewater Treatment | Pharmaceutical | Chemical Industry | Printing & Dyeing |
20+ Global Certifications: CE, IECEx, SIL 2/3, API 670, and ISO 9001 compliance.
48-Hour Emergency Support: Worldwide technical response network.
Multilingual Engineering Teams: Fluent in EN/JP for seamless collaboration.
Extreme Environment Expertise: -200°C to 3000°C measurement solutions.
High-Performance Materials: Hastelloy C276.
Custom OEM/ODM Services: Rapid prototyping in 72 hours.
 |  |  |  |
 |  |  |  |
