FT100 is an intelligent two-wire temperature transmitter that connects to sensors like thermistors and thermocouples. It processes the input signals and outputs a standard 4~20mA signal, with HART protocol support.
| |
| FT100 Series | FT100 No Display |
| |
| FT100-B Display | FT100-X Integrated LED |
|  |
| FT100-J Bimetallic Mechanical Dial | Protective sleeve ( optional ) |
Main Features
Output：4-20mA two-wire system with HART protocol capability
Configuration：DIP switch settings plus PC programmable
Accuracy：≤0.2% or 0.2K
Stability：≤0.1° C/year or 0.05%/year
Lightning Protection：±4000V (up to 5 times)
Pulse Immunity：±3000 to 4000V
Temperature Drift：0.008% FS/1° C
Original imported output module
Explosion-proof cast aluminum housing, waterproof up to IP67

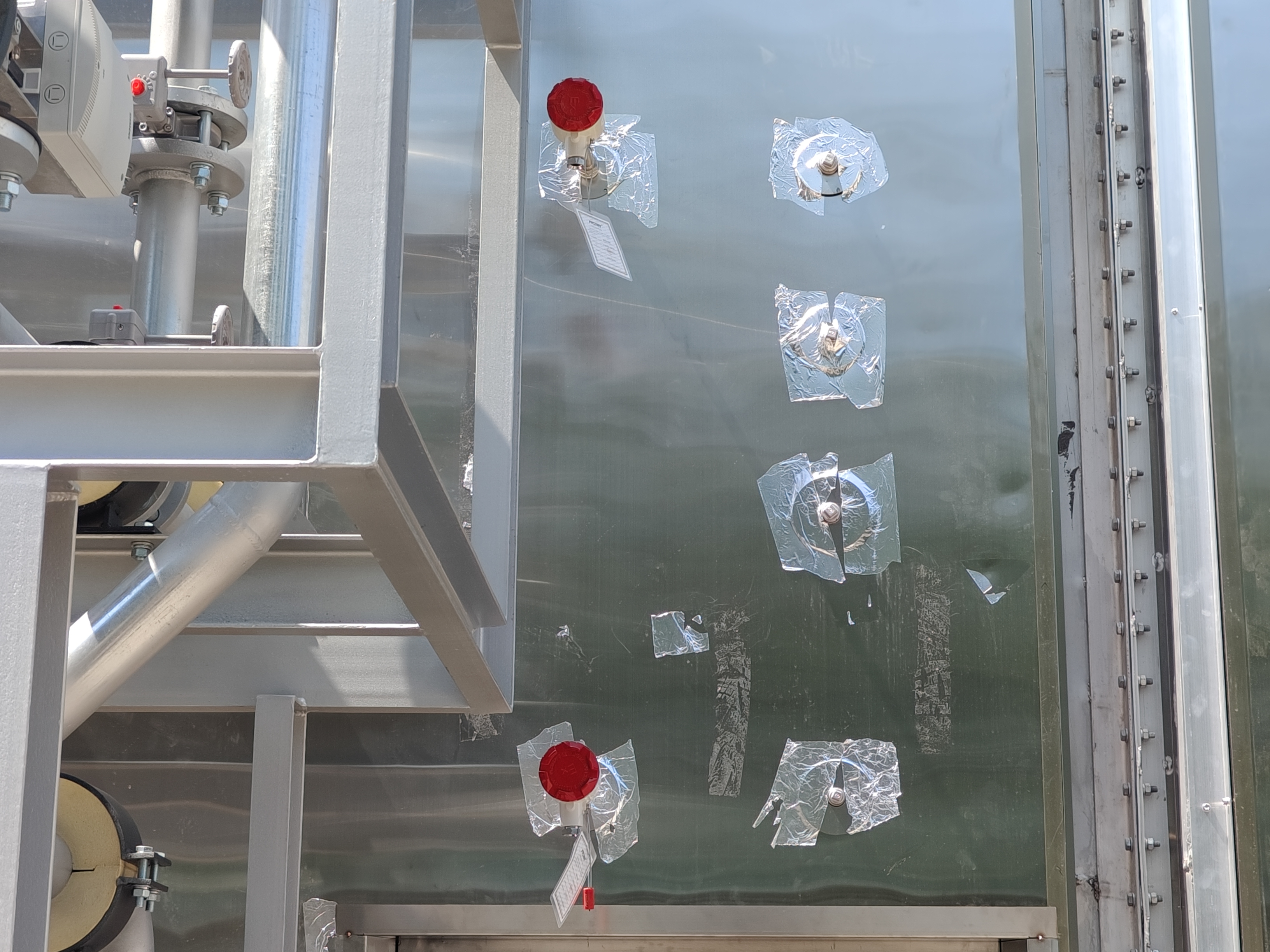

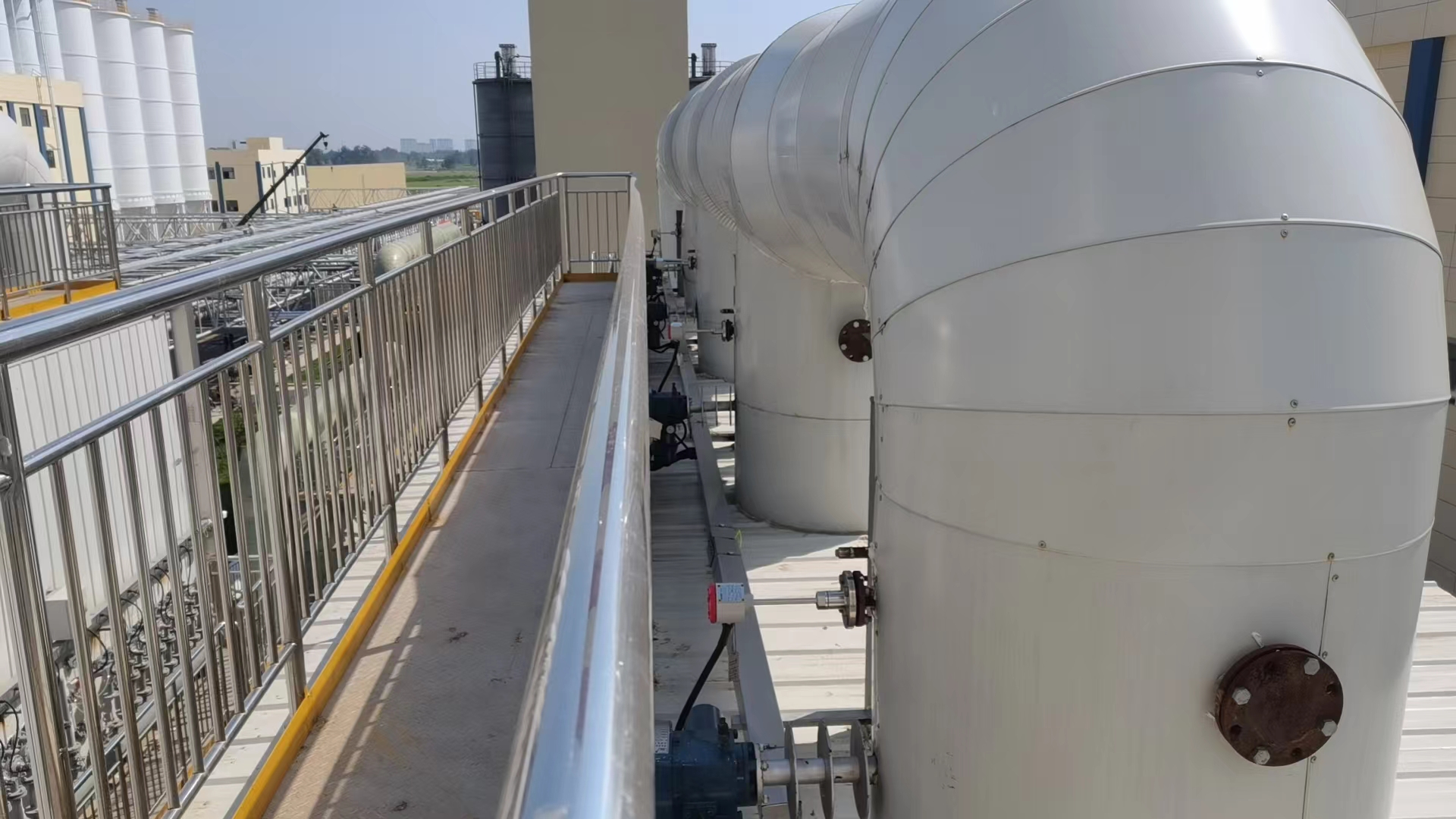

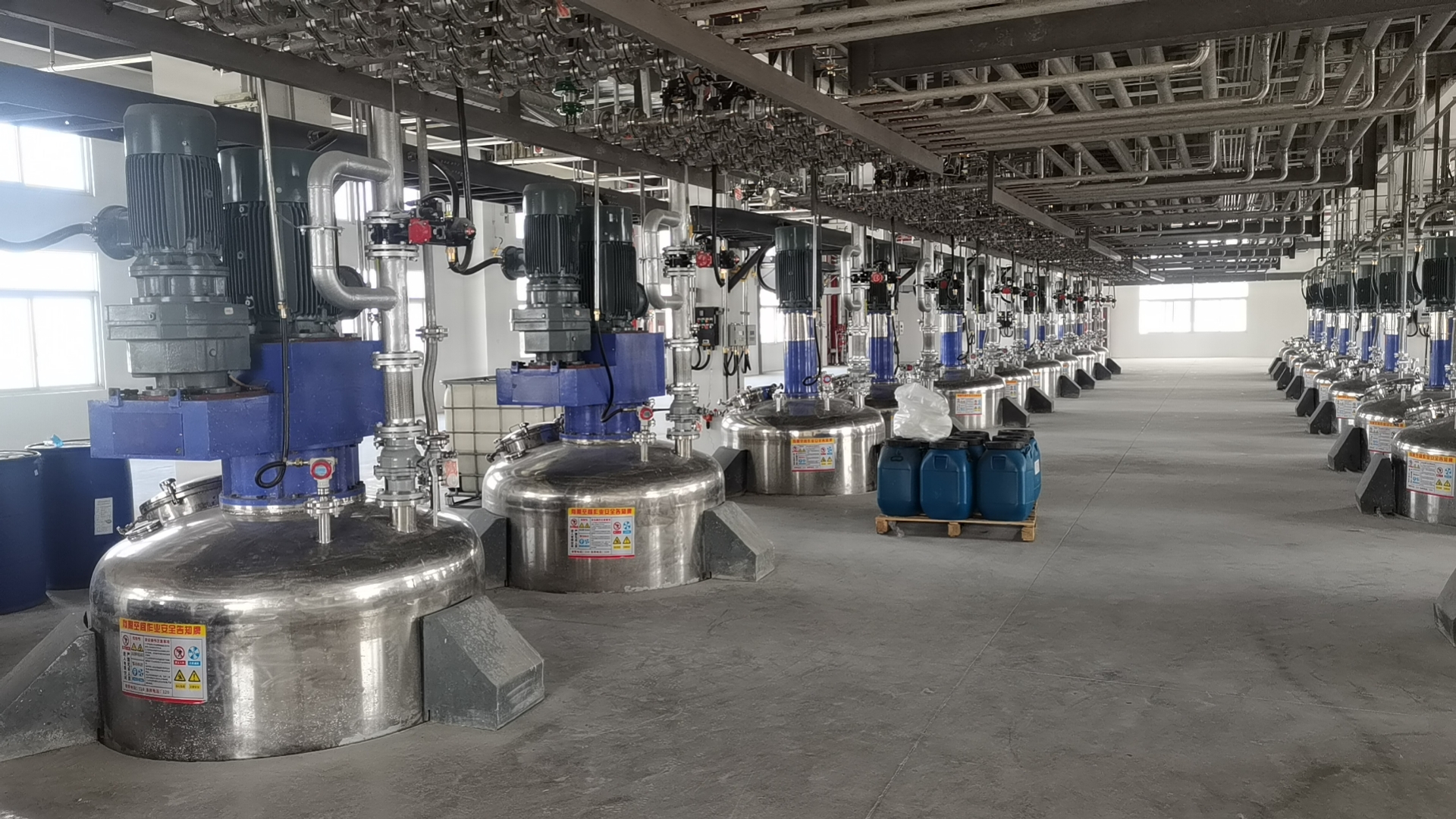

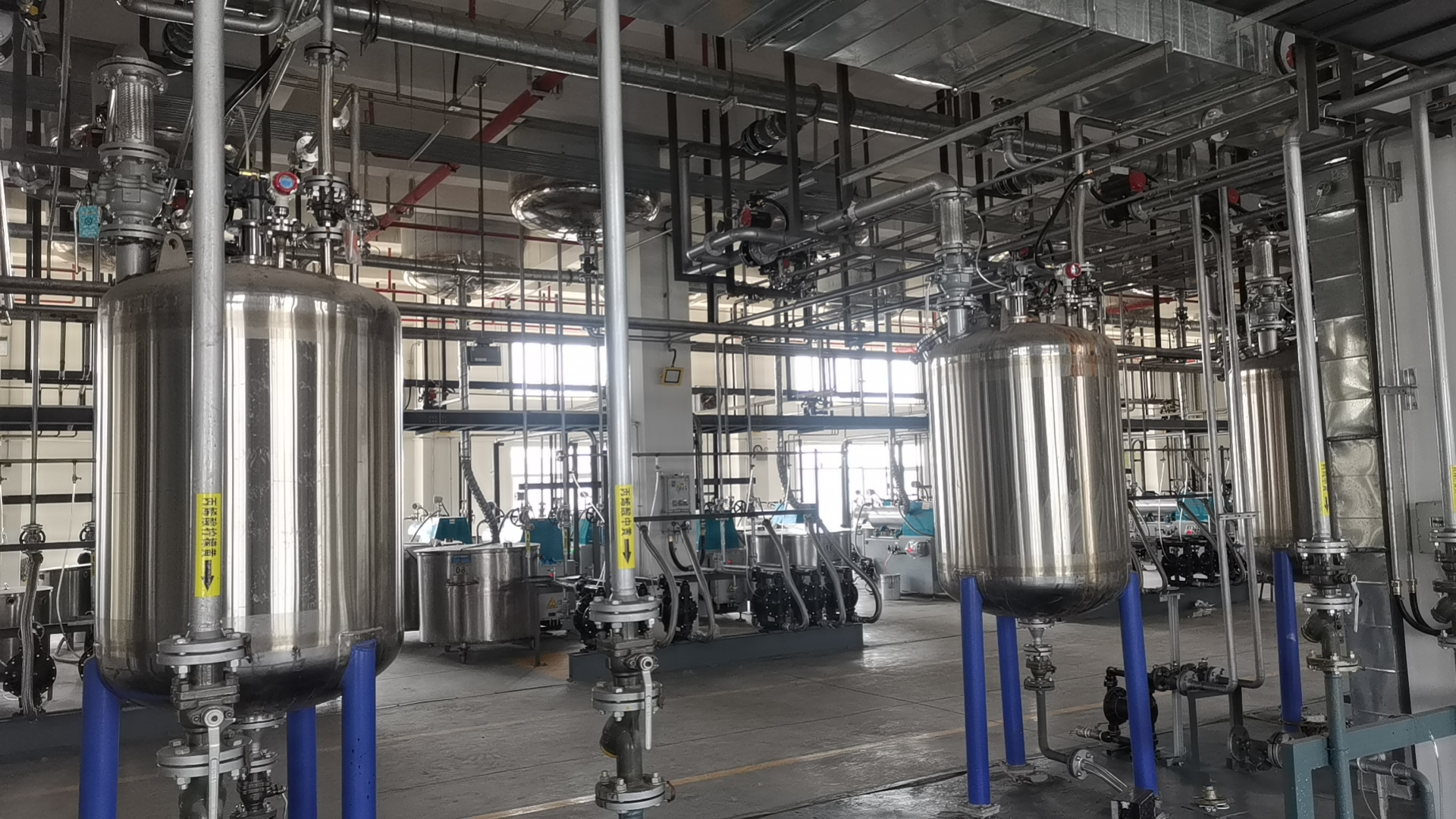

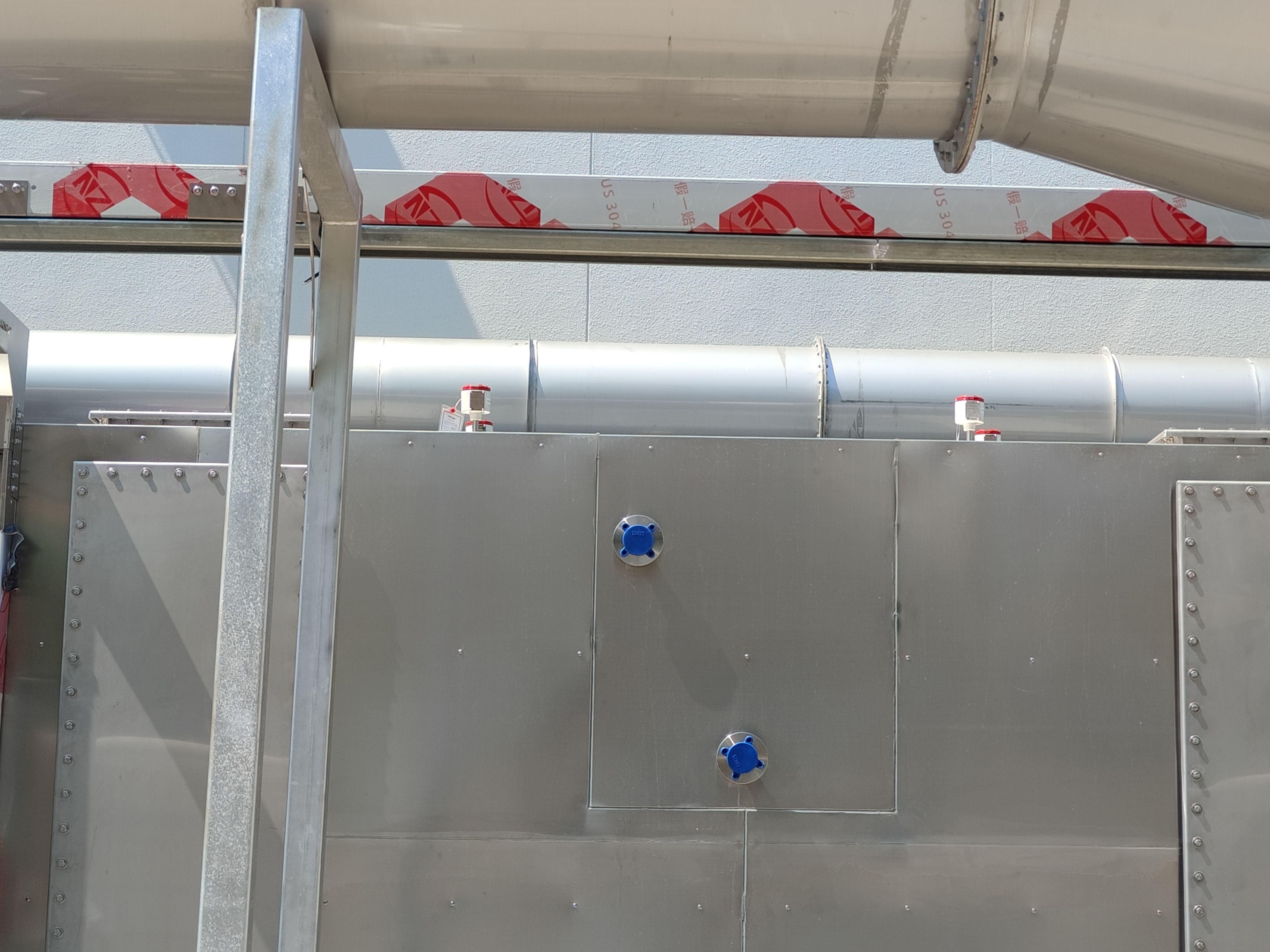

Product Working Condition Display
 |  |
 |  |
 |  |
 |
 |  |  |  |
| Oil and Gas | Chemical Industry | Power Generation | Textile & Dyeing |
20+ Global Certifications: CE, IECEx, SIL 2/3, API 670, and ISO 9001 compliance.
48-Hour Emergency Support: Worldwide technical response network.
Multilingual Engineering Teams: Fluent in EN/JP for seamless collaboration.
Extreme Environment Expertise: -200°C to 3000°C measurement solutions.
High-Performance Materials: Hastelloy C276.
Custom OEM/ODM Services: Rapid prototyping in 72 hours.
 |  |  |  |
 |  |  |  |
